61 31 348 Replacing microswitch for unlocking rear lid
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Remove strip handle (on rear lid). See 51 13 402 REMOVING AND INSTALLING HANDLE STRIP (ON TRUNK LID)

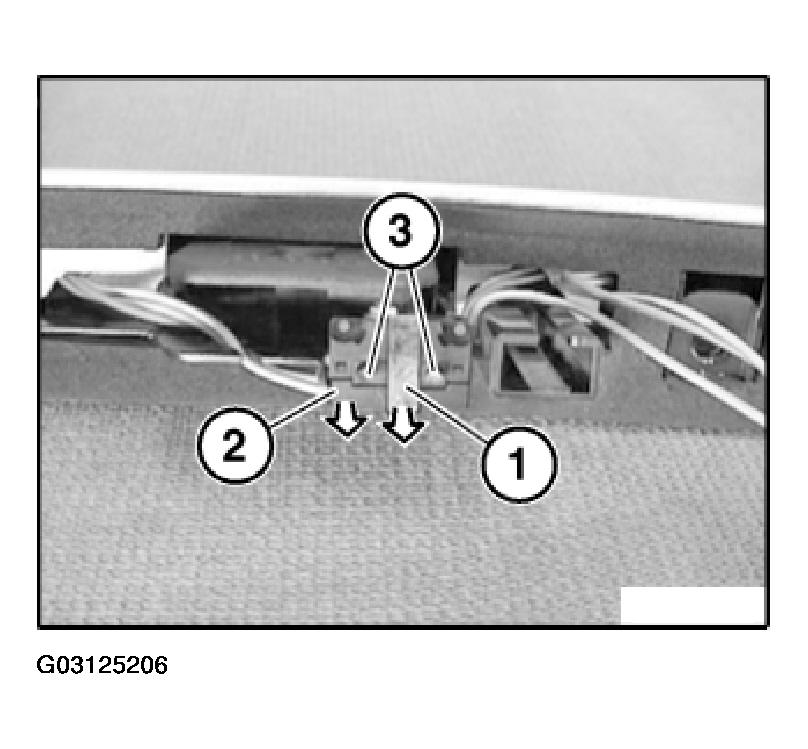

Remove clip (1) in direction of arrow.
Installation:
Make sure clip (1) is correctly seated. Remove switch for unlocking rear lid (2) in direction of arrow from fixtures (3).
Cut wires on switch for unlocking rear lid (2) to length and strip insulation.
Crimp stop parts.
