62 1 120 HUD adjusting tool

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2010 BMW M6, 2010 BMW 650i, 2009 BMW M6, 2009 BMW 650i, and 2008 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For adjusting head-up display with projection gauge 62 1 121 and adjusting wrench 62 1 122

Series: E60, E61, E63, E64

SI number: 01 22 03 (028)

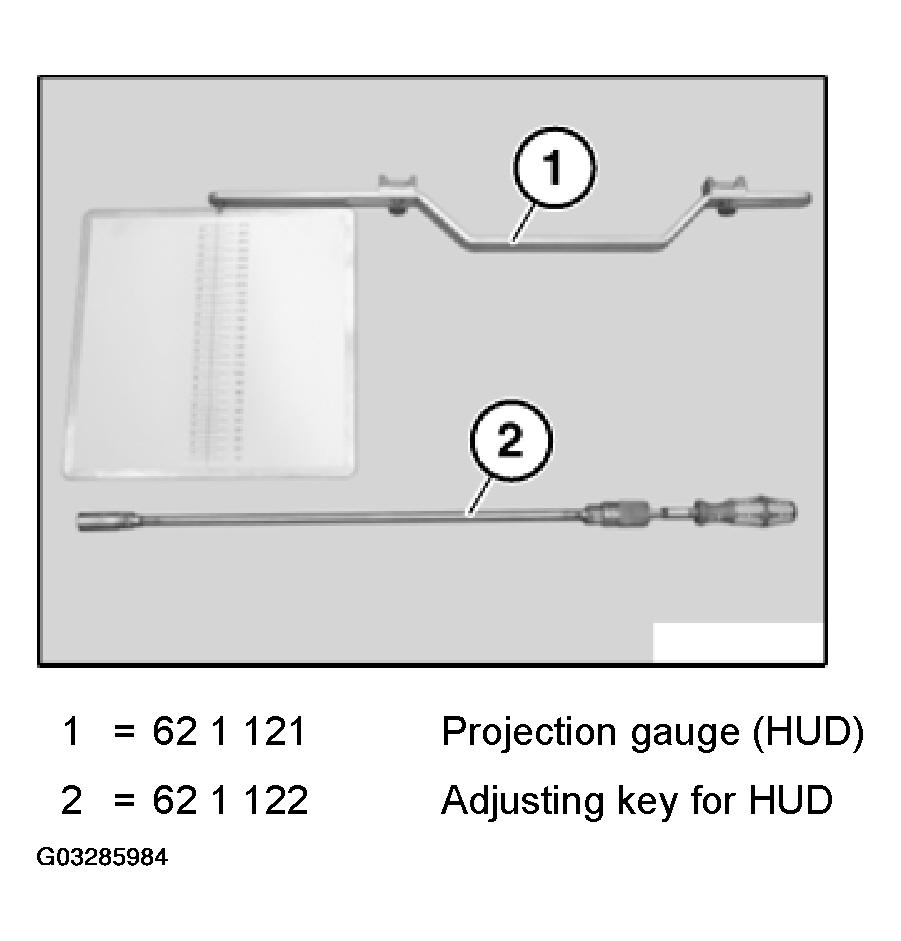

Fig 1: Identifying Hood Adjusting Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Order number: 62 1 120

HUD adjusting tool

Consisting of:

1 = 62 1 121 Projection gauge (HUD)

NOTE: For test image of head-up display

2 = 62 1 122 Adjusting key for HUD

NOTE: For height adjustment of HUD

In conjunction with: Projection gauge 62 2 121
