11 7 390 Complete pressure testing fixture

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 BMW 545i, 2005 BMW 530i, 2005 BMW 525i, 2004 BMW 545i, and 2004 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Note: For closing off coolant outlet openings when pressure-testing cylinder head for water leaks

Engine: M52TU, M54, M56

Order number: 11 7 390

Complete pressure testing fixture

Consisting of:

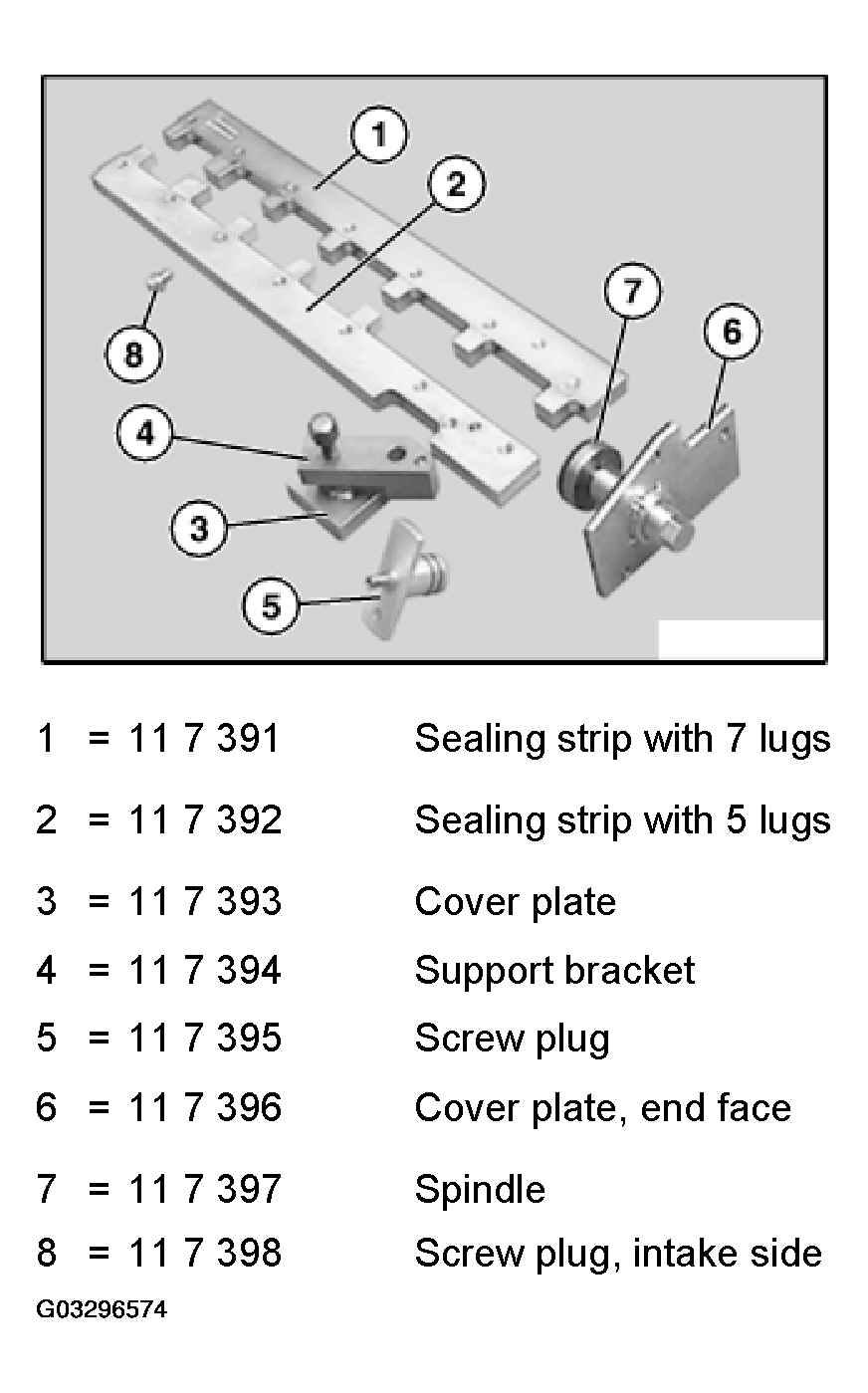

Fig 1: Identifying Pressure Testing Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

1 = 11 7 391 Sealing strip with 7 lugs

2 = 11 7 392 Sealing strip with 5 lugs

3 = 11 7 393 Cover plate

Note: For cylinder head sealing face

4 = 11 7 394 Support bracket

Note: With pressure spindle and mounting screw for 11 7 393

5 = 11 7 395 Screw plug

Note: With air connection

6 = 11 7 396 Cover plate, end face

7 = 11 7 397 Spindle

Note: With thrust piece for 11 7 396

8 = 11 7 398 Screw plug, intake side
