11 9 470 Support
WARNING: This page is about a different car, the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760Li, and 2003 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Minimum Set: Mechanical Tools
SUPPORT SPECIFICATIONS
| Note: | For installing/removing bearing bracket (Camcarrier) |
| Engine: | N62, N62TU, N73 |
| SI number: | 1 14 01(766) |
| Order number: | 11 9 470 |

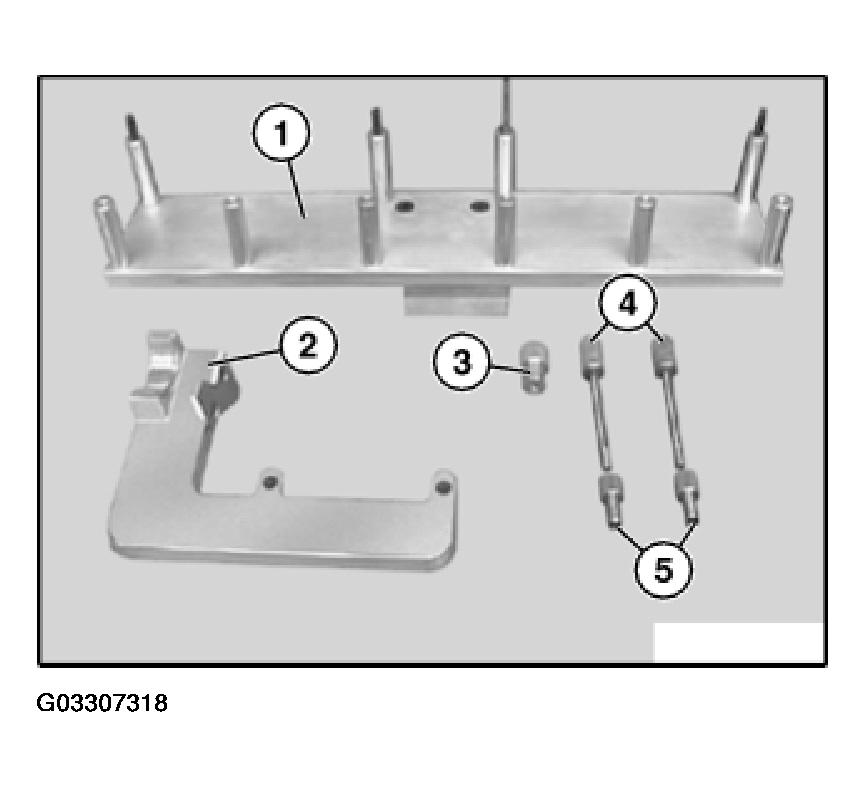

| Support | |
| Consisting of: | |
| 1 = 11 9 471 | Base plate |
| 2 = 11 9 472 | Shaped section |
| 3 = 11 9 473 | Knurled nut |
| 4 = 11 9 474 | Retaining screws (2 x) |
| 5 = 11 9 475 | Guide bushes (2 x) |
| 6 = 11 9 476 | Shaped section |
|
NOTE:
For securing inlet camshaft during installation in bearing bridge - Engine: N73
|
