84 11 615 Removing And Installing/Replacing Eject Box (In Rear Center Armrest)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW 760i, 2005 BMW 760i, 2005 BMW 760Li, 2004 BMW 760i, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For Special Tool identification, see MAINTENANCE AND GENERAL INFORMATION - SPECIAL .

Special Tools Required:

00 9 341

Fold down center armrest.

Open upper armrest section.

Attach special tool 00 9 341 as illustrated.

Unclip eject box (1) in direction of arrow and remove.

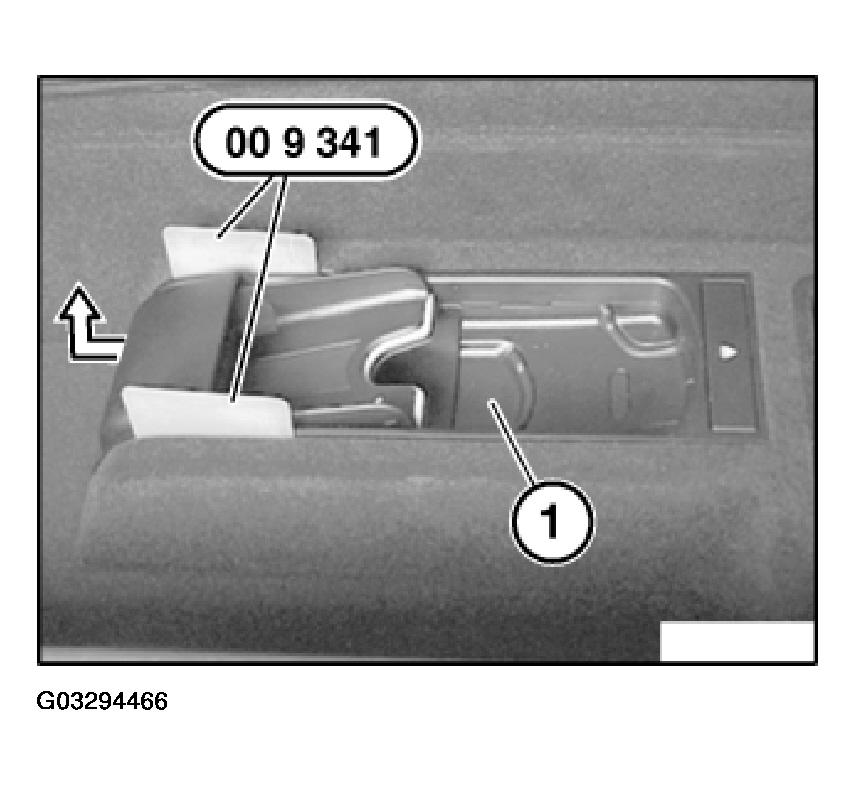

Fig 1: Attaching Special Tool And Removing Eject Box

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Remove eject box (2).

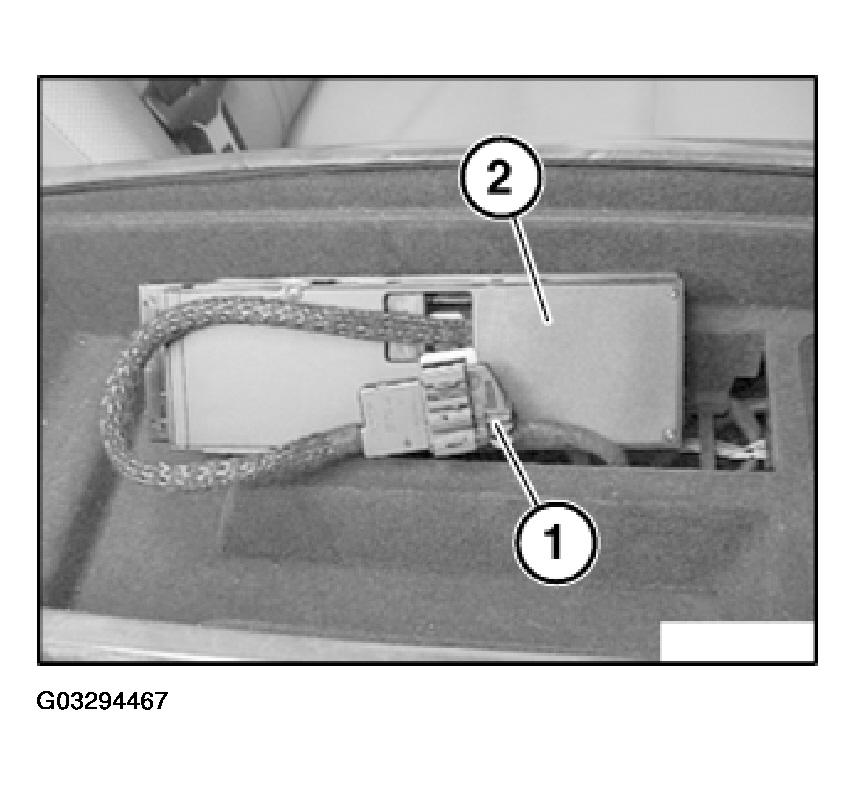

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
