61 35 970 Removing And Installing/Replacing Rear Luggage Compartment Antenna For Comfort Access System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 760Li, 2007 BMW 760Li, 2006 BMW 760Li, 2005 BMW 760Li, and 2004 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

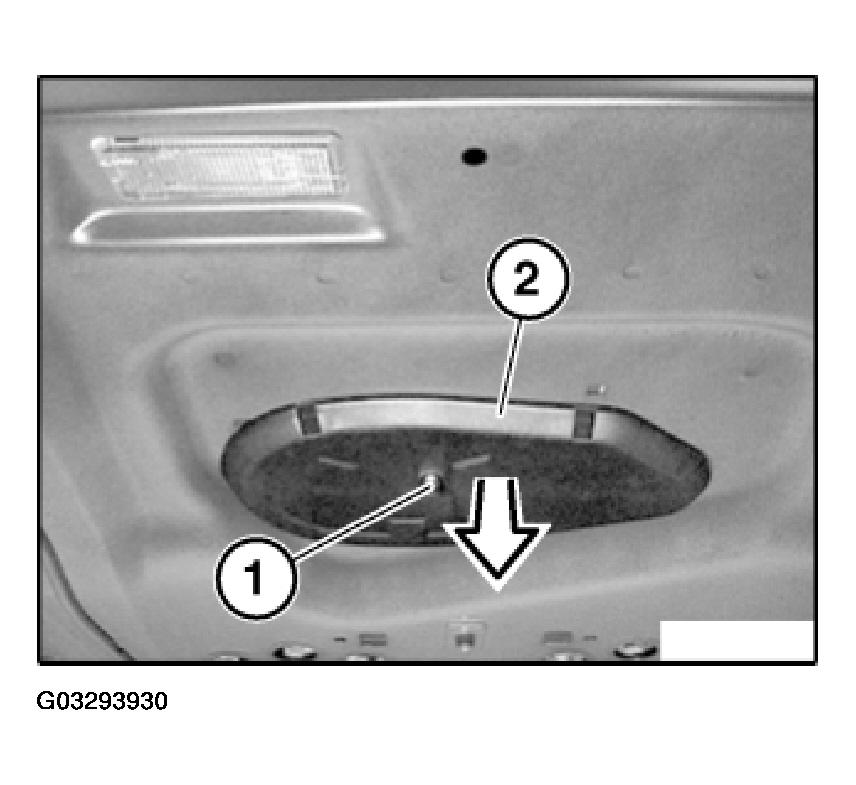

Release screw (1) and lower luggage compartment antenna for comfort access system (2) in direction of arrow.

Installation:

Make sure positioning pins on upper side of luggage compartment antenna for comfort access system (2) are correctly seated in designated bores.

Fig 1: Rear Luggage Compartment Antenna, Screw And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

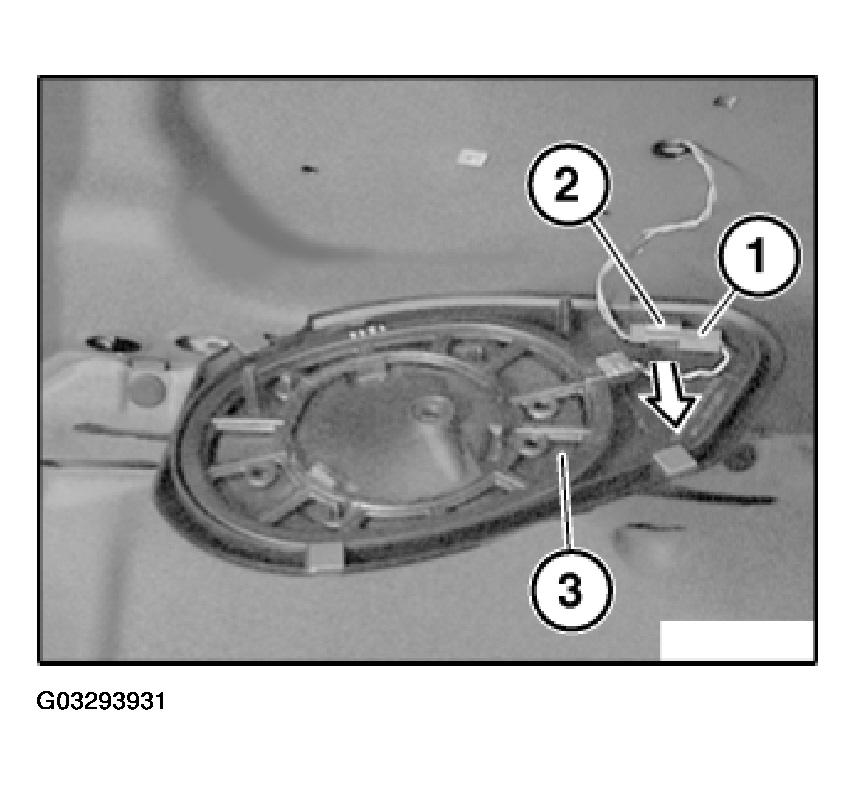

Unclip plug connection (1) from fixture (2) and disconnect.

Remove luggage compartment antenna for comfort access system (3).

Fig 2: Plug Connection, Comfort Access System Luggage Compartment Antenna, Fixture And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.
