Special Tools

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2006 BMW M3, 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW M3, and 2005 BMW 330i. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fixture (31 2 110)

G00155833

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Fixture (31 2 150)

G00155834

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Identifying Press-Off Tool (32 3 090)

G00155832

Courtesy of BMW OF NORTH AMERICA, INC.

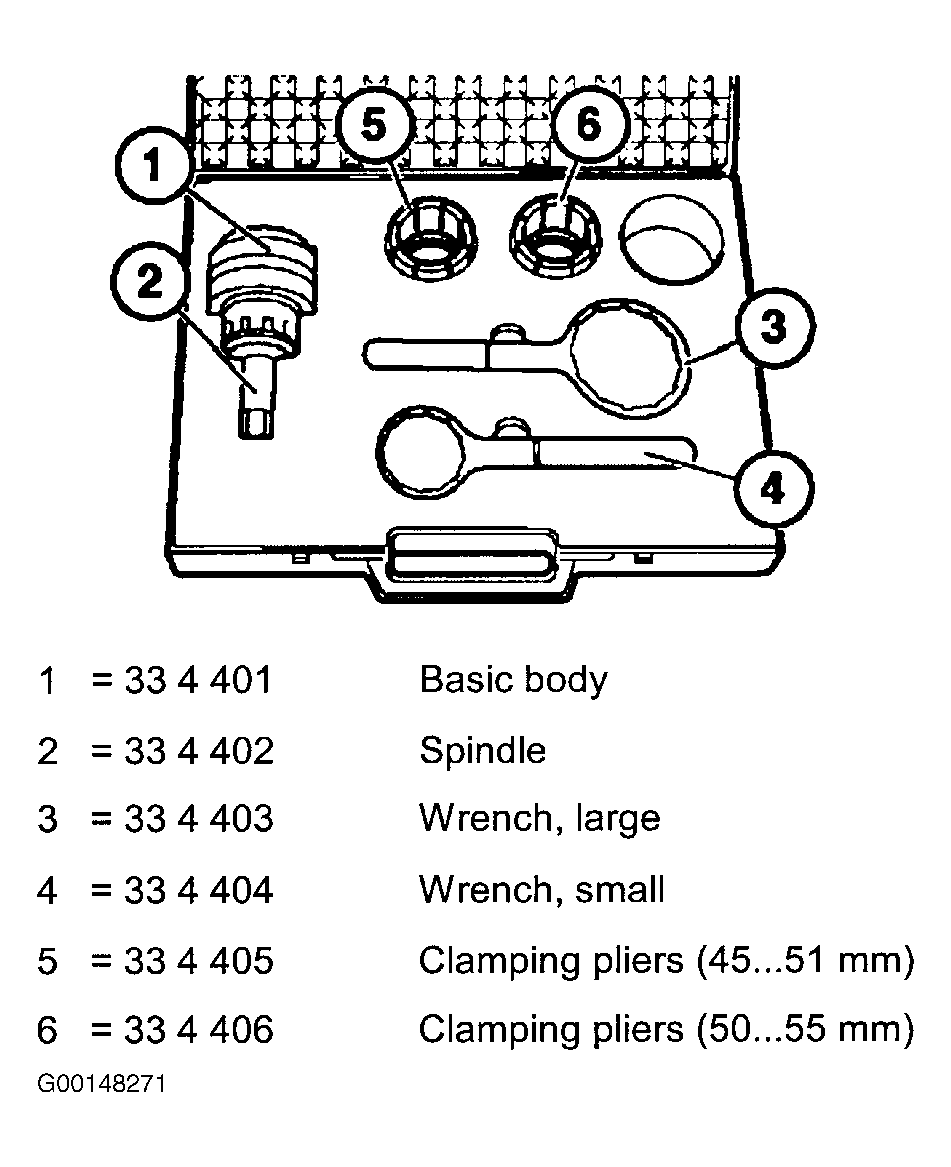

Fig 4: Identifying Puller Fixture (33 4 400)

G00148271

Courtesy of BMW OF NORTH AMERICA, INC.

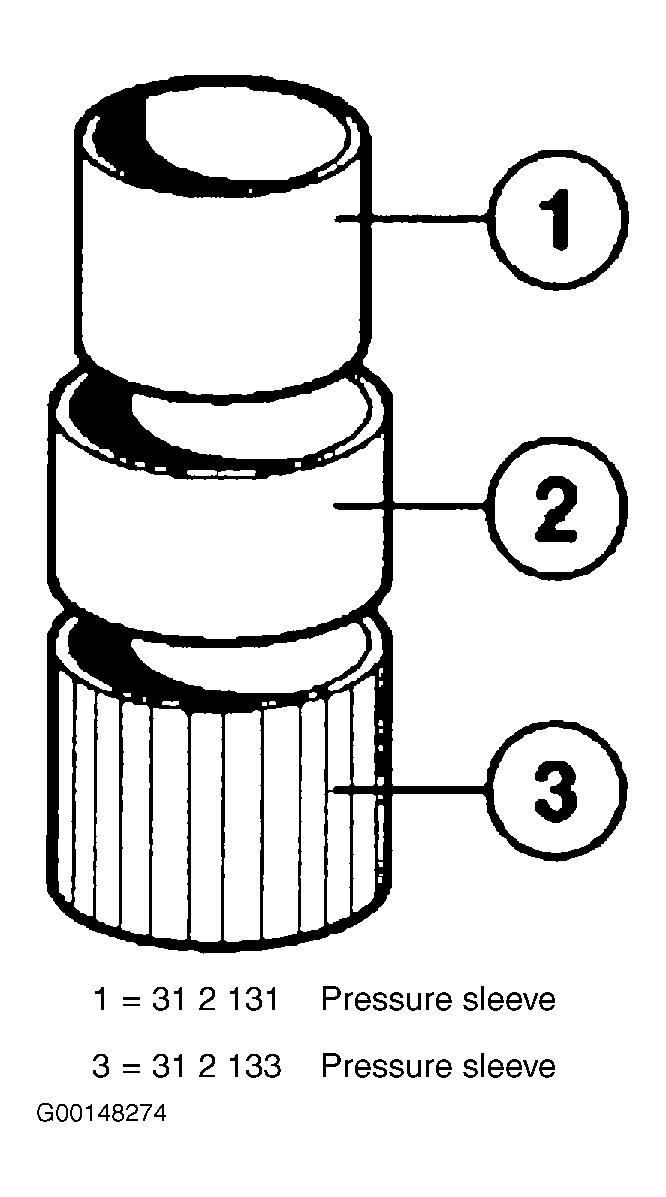

Fig 5: Identifying Removal & Installation Tool (31 2 130)

G00148274

Courtesy of BMW OF NORTH AMERICA, INC.

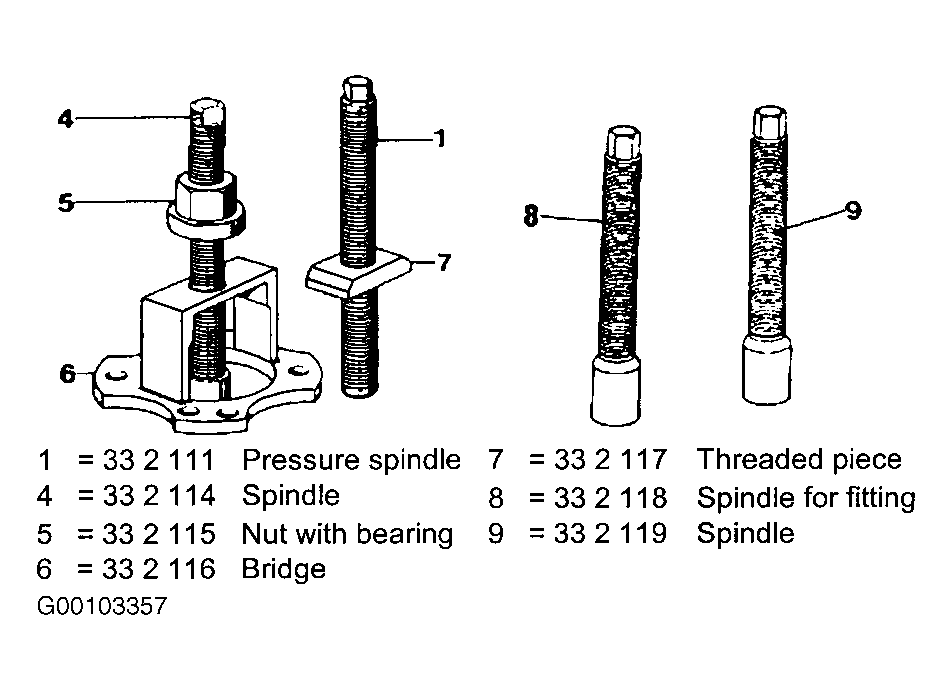

Fig 6: Identifying Removal & Installation Tool (33 2 110)

G00103357

Courtesy of BMW OF NORTH AMERICA, INC.

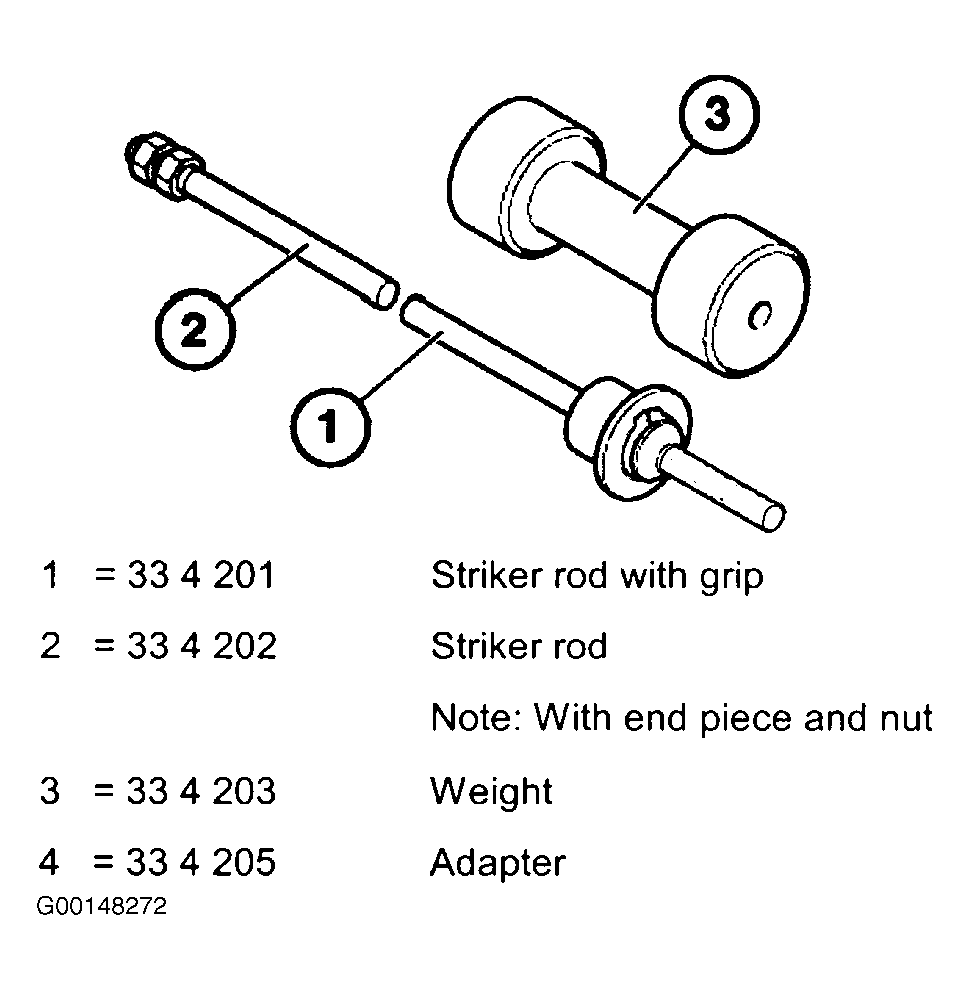

Fig 7: Identifying Set Of Tools (33 4 200)

G00148272

Courtesy of BMW OF NORTH AMERICA, INC.

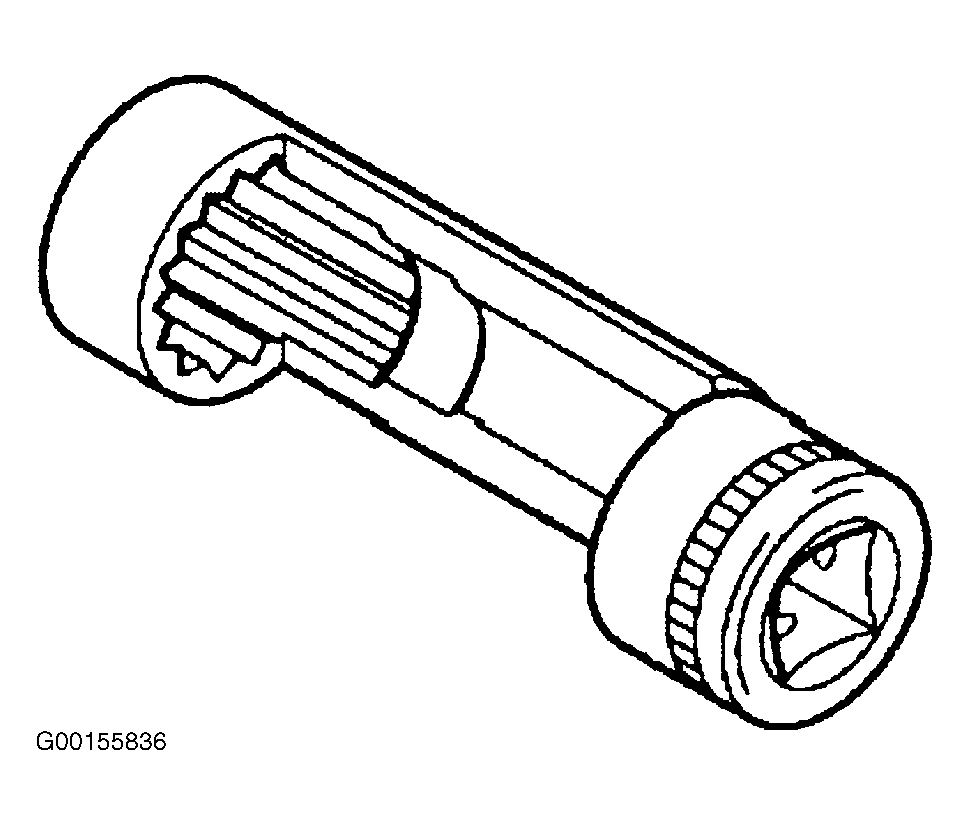

Fig 8: Identifying Socket Wrench Socket (31 2 210)

G00155836

Courtesy of BMW OF NORTH AMERICA, INC.

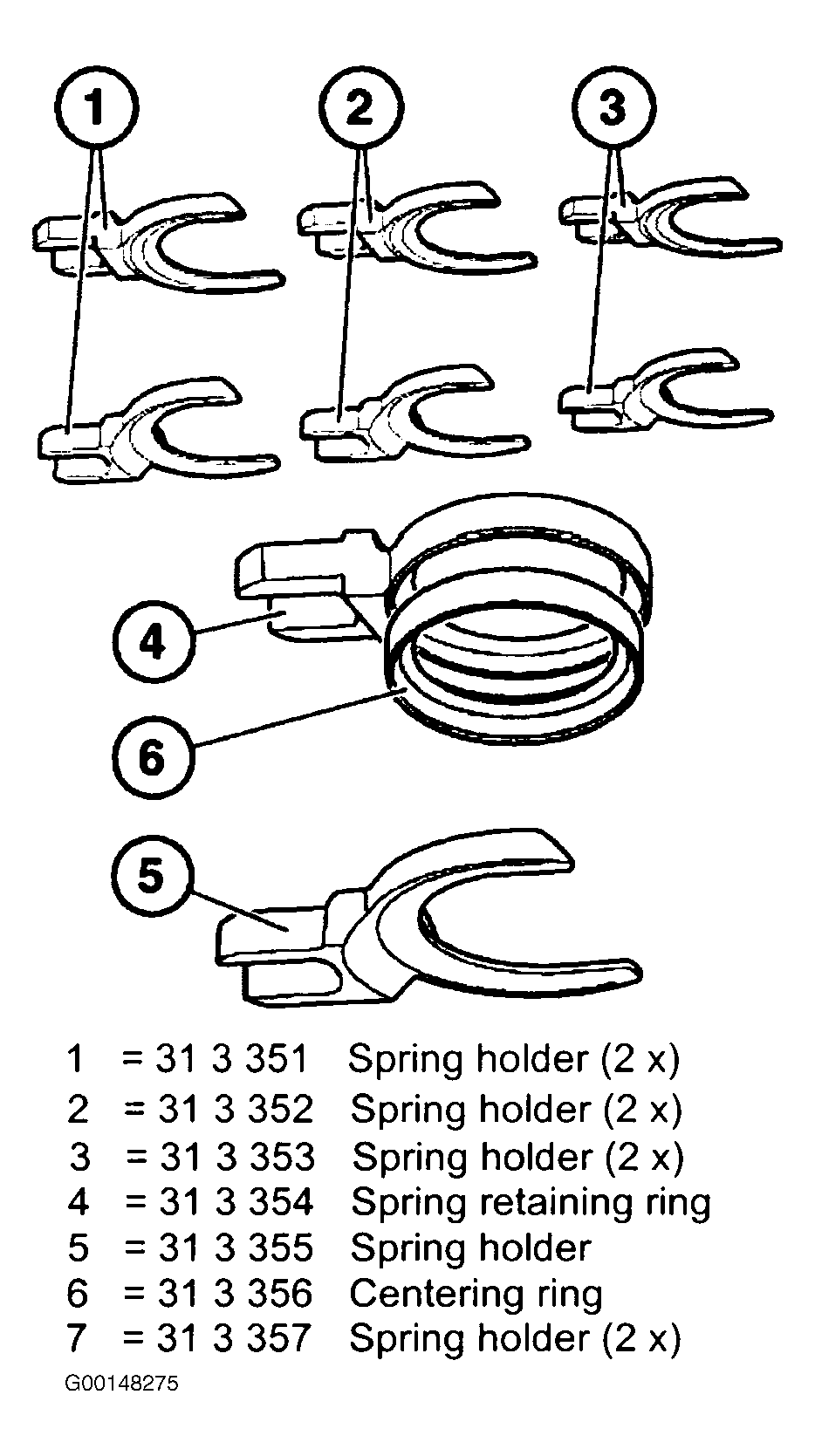

Fig 9: Identifying Spring Holder Set (31 3 350)

G00148275

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Identifying Torque Angle Measuring Dial (00 9 120)

G00155831

Courtesy of BMW OF NORTH AMERICA, INC.

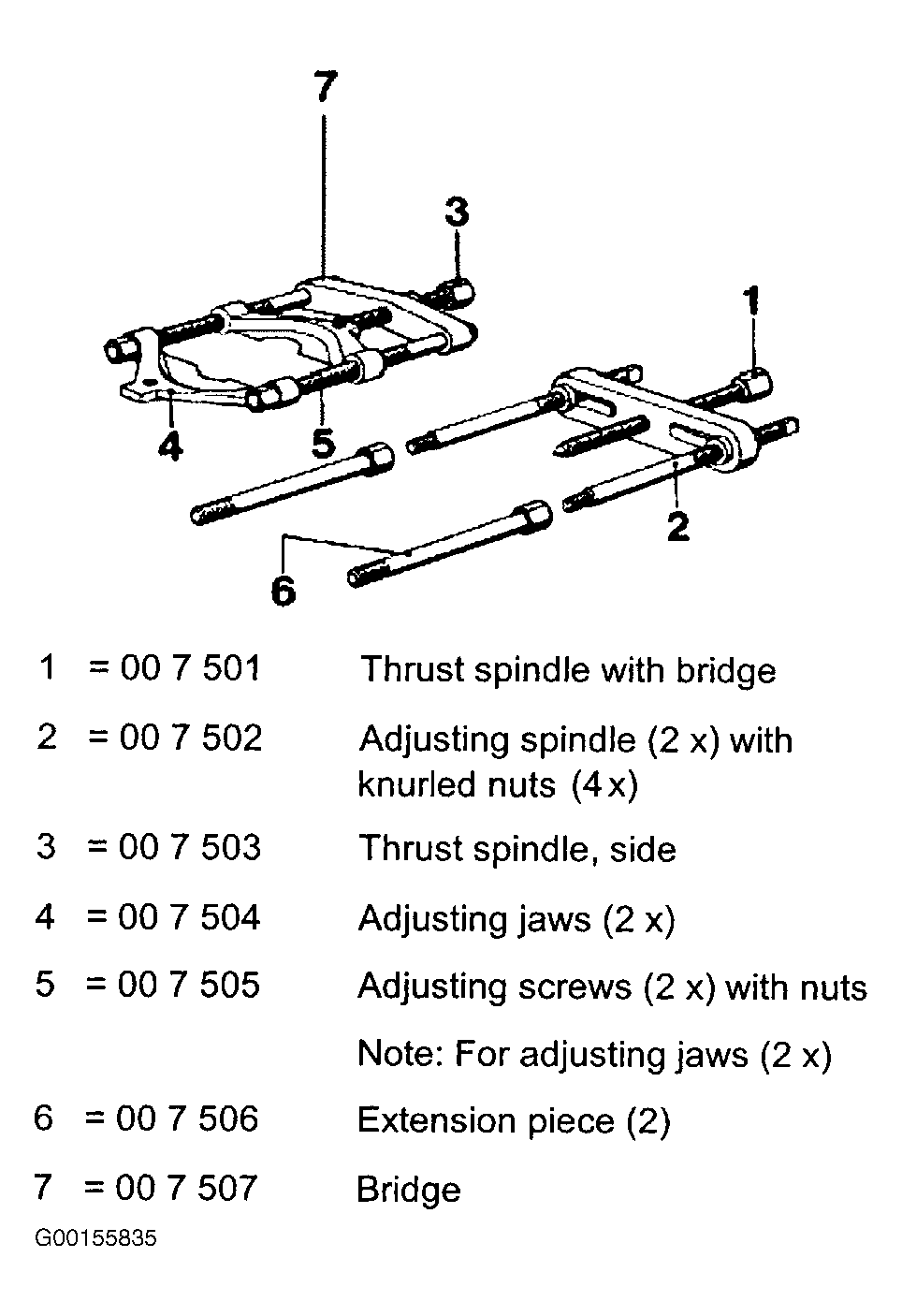

Fig 11: Identifying Universal Puller (00 7 500)

G00155835

Courtesy of BMW OF NORTH AMERICA, INC.

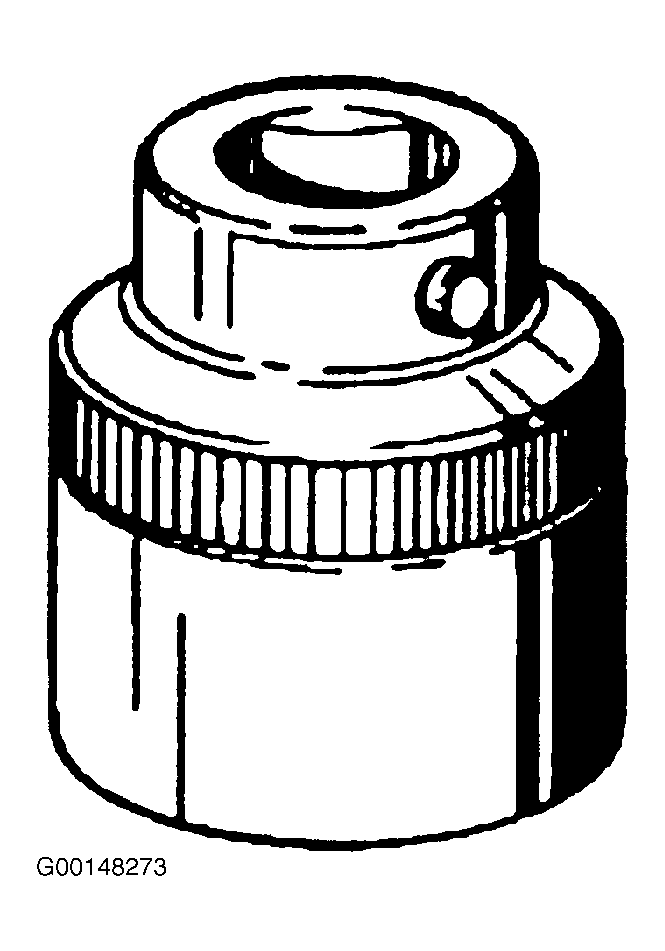

Fig 12: Identifying Wrench Socket (31 2 080)

G00148273

Courtesy of BMW OF NORTH AMERICA, INC.
