61 31 193 Removing and installing/replacing button unit (for on-board monitor)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
NOTE:
For special tools, refer to BODY ELECTRICAL - SPECIAL TOOLS - 645CI (E63)
.
- 00 9 341

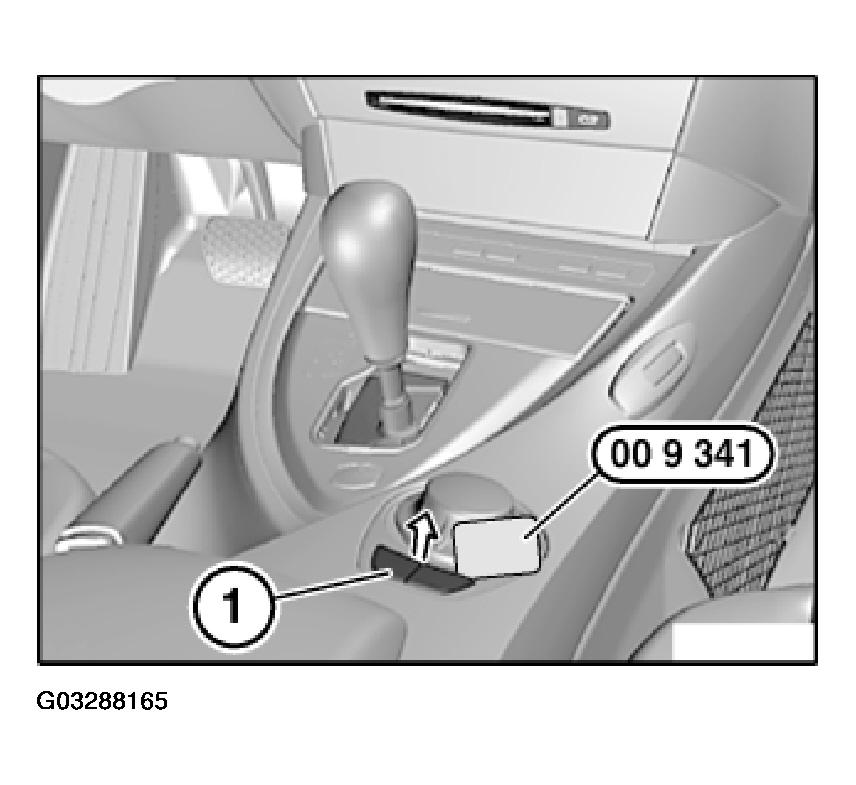

Partially fit special tool 00 9 341 as illustrated.
Unclip button unit (1) and lever out in direction of arrow.
Unlock and disconnect associated plug connection, remove button unit (1).
