61 35 220 Removing and installing (replacing) control unit for left or right front door

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove front door trim, refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .

Unlock plug connections (1) and disconnect.

Release screws (2).

If necessary, unclip electric leads at point (3).

Remove control unit in front door (4).

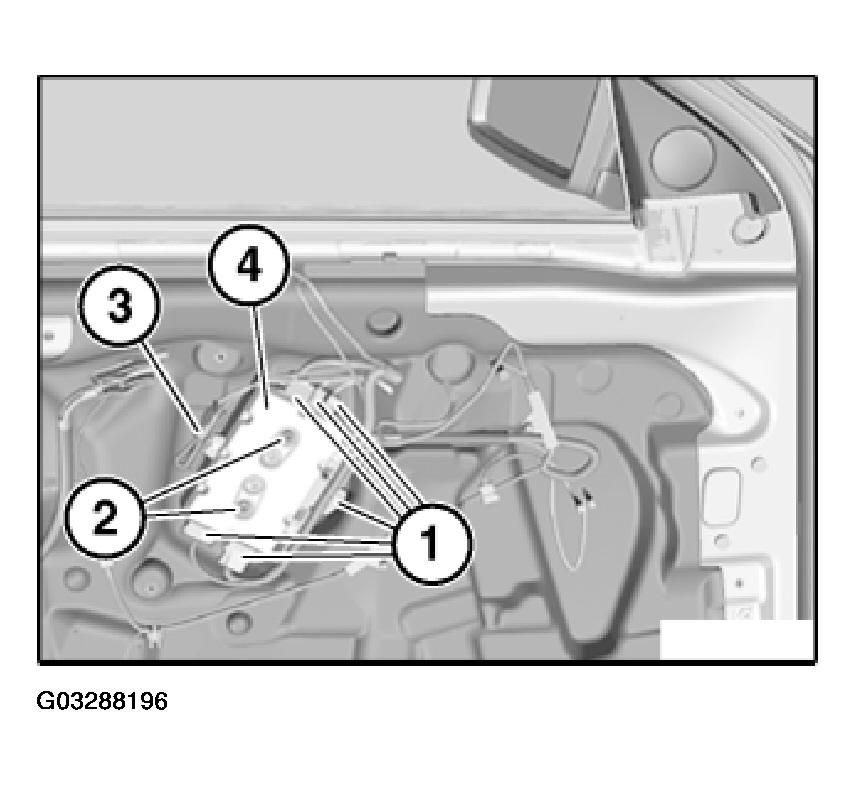

Fig 1: Removing Control Unit For Left Or Right Front Door

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding, refer to DIAGNOSIS PROGRAMMING/CODING .
