32 00... Additional work for camber correction

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The camber adjustment is performed only with the replacement of the swivel bearing. There are 3 different swivel bearings for this!

IMPORTANT: Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!

NOTE: The swivel bearing may only be replaced if the camber is outside the specified tolerance after toe adjustment.

Necessary preliminary tasks:

Adjust the TOE-IN
Check camber values; if necessary, replace SWIVEL BEARING with over- or under-dimension variant.

Part number (1) in the graphic is only an example number!

NOTE: Series swivel bearing can be identified using the BMW part number (1) only (cast at the bottom).

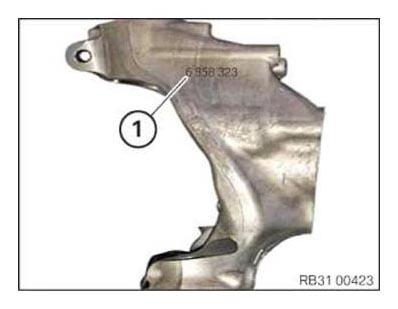

Fig 1: Identifying BMW Part Number

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Camber correction swivel bearings can only be identified from the BMW part number (1) (engraved at the top of the damper mount).

Fig 2: Identifying BMW Part Number

Courtesy of BMW OF NORTH AMERICA, INC.

Version	BMW part number
Standard (except M135iX/M235iX)	6 853 819/820
+ 30'	6 856 537/538
- 30' (= Standard M135iX/M235iX)	6 856 535/536

These camber correction swivel bearings are used to correct the camber values by 30 min. To be used only if the tolerance values are exceeded or undershot!

After Installation note:

Check directional stability of car; if necessary, repeat TOE-IN adjustment

NOTE: The camber adjustment is performed only with the replacement of the swivel bearing. There are 3 different swivel bearings for this!

IMPORTANT: Changes in axle geometry caused by accidents must under no circumstances be rectified by camber adjustment!

NOTE: The swivel bearing may only be replaced if the camber is outside the specified tolerance after toe adjustment.

Necessary preliminary tasks:

Adjust toe-in.
Check camber values; if necessary, replace SWIVEL BEARING with over- or under-dimension variant.

NOTE: Standard swivel bearings can only be identified from the BMW part number (1) (cast at the bottom).

Fig 1: Identifying BMW Part Number

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Camber correction swivel bearings can only be identified from the BMW part number (1) (engraved at the top of the damper mount).
These camber correction swivel bearings are used to correct the camber values by 30 min. To be used only if the tolerance values are exceeded or undershot!

Fig 2: Identifying BMW Part Number

Courtesy of BMW OF NORTH AMERICA, INC.

Version	BMW part number
Standard	6 792 287/288
+ 30'	6 854 197/198
- 30'	6 854 199/200

After Installation note:

Check directional stability of car; if necessary, repeat TOE-IN adjustment
