32 43 010 Removing and installing / replacing control unit for active front steering
WARNING: This page is about a different car, the 2005 BMW 645Ci and 2004 BMW 645Ci. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection), refer to 61 35 ... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
IMPORTANT:
Do not kink floor panelling under any circumstances!
After installation:
- Replacement only: Carry out coding, refer to DIAGNOSIS PROGRAMMING/CODING .
- Replacement/coding only: Carry out adjustment for active front steering, refer to 32 10 005 ADJUSTMENT FOR ACTIVE FRONT STEERING .
Necessary preliminary tasks:
- Remove right entrance strip
- Remove right front seat
- Disconnect battery negative lead
- If necessary, remove front right floor mat
- Remove side trim in front right footwell
- Fold back front right floor trim
- Remove kickplate in footwell in front of and next to control unit; if necessary, cut along specified lines with knife and secure later with adhesive tape

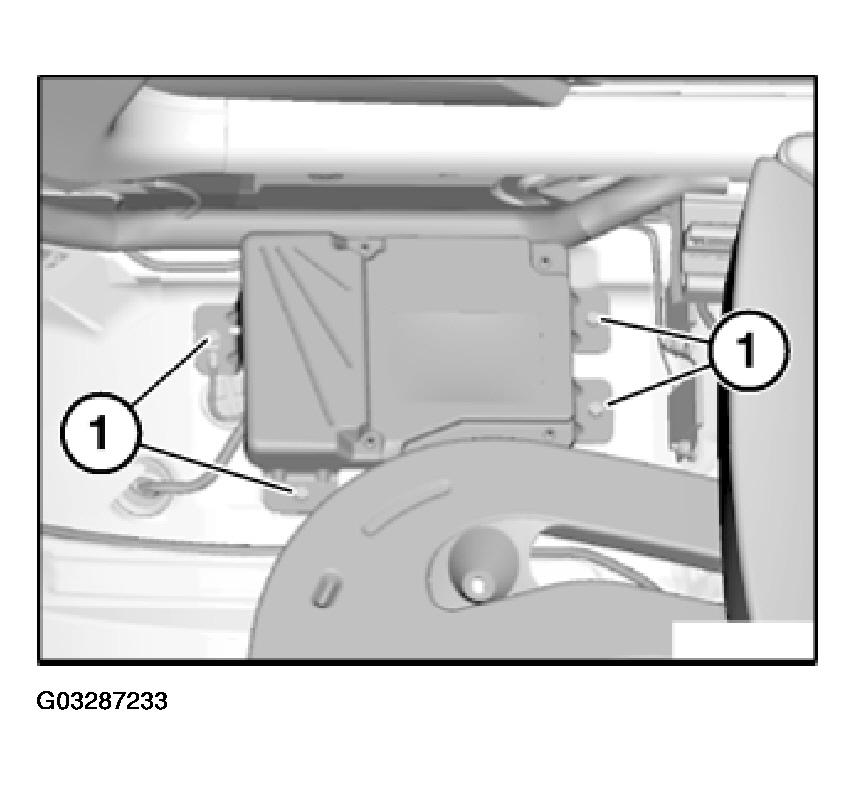

Release screws (1).
Lay grounding cable to one side.
Installation:
Secure grounding cable as illustrated to retaining plate.
Raise active front steering control unit and turn over.

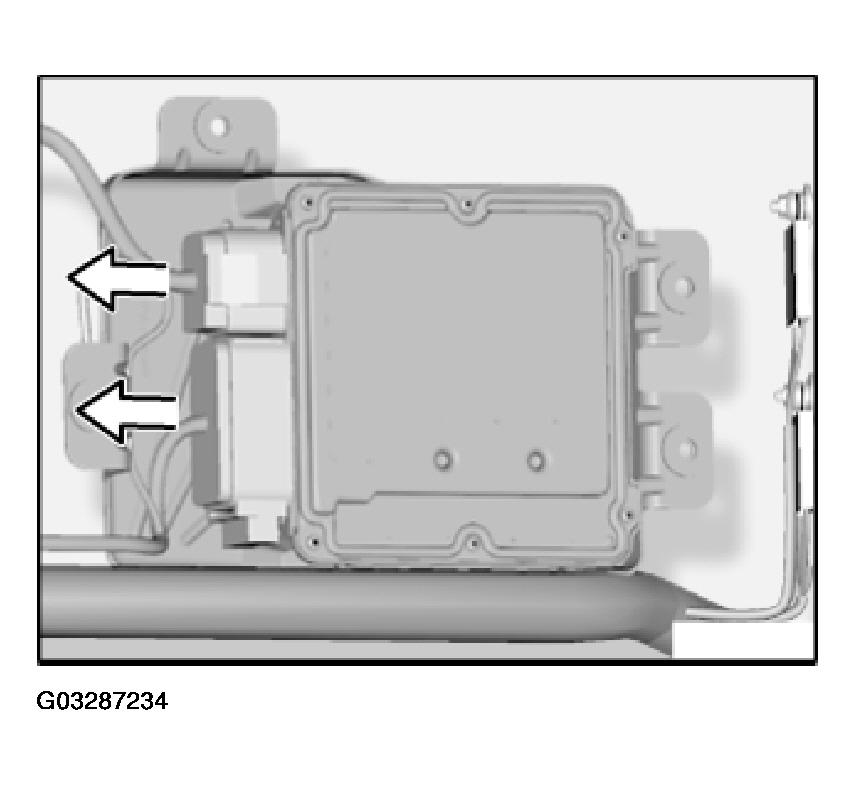

Unlock connector and remove.
Remove active front steering control unit.
