61 35 001 Removing and installing (replacing) trailer module
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .
Necessary preliminary tasks:
- Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

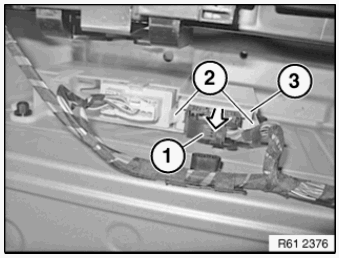

Unfasten plug connection (1) and disconnect.
Unlock equipment holder (2).
Pull out trailer module (3) upwards in direction of arrow.
Installation note:
Ensure trailer module (3) is seated correctly.
Replacement:
Carry out VEHICLE PROGRAMMING/ENCODING .
