13 62 593 Removing and installing/replacing pressure sensor on left intake manifold (N74)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ACOUSTIC COVER

Unlock plug (1) and remove.

Unfasten screws (2).

Tightening torque: see 7AZ in 13 62 SENDERS FOR CONTROL UNIT

Pull pressure sensor (3) out of intake air manifold.

Installation:

Coat sealing ring with anti-friction agent.

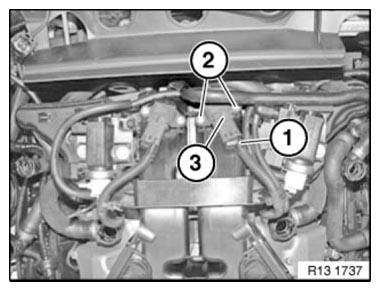

Fig 1: Identifying Pressure Sensor, Plug And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Delete fault memory.
