61 11... Installing repair cable for reversing camera
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.
Read and comply with notes on HANDLING WIRING HARNESSES AND CABLES .
NOTE:
Work is shown on the F01 by way of example. There may be differences in detail in the case of other vehicle types and equipment specifications.
Remove trim panels.

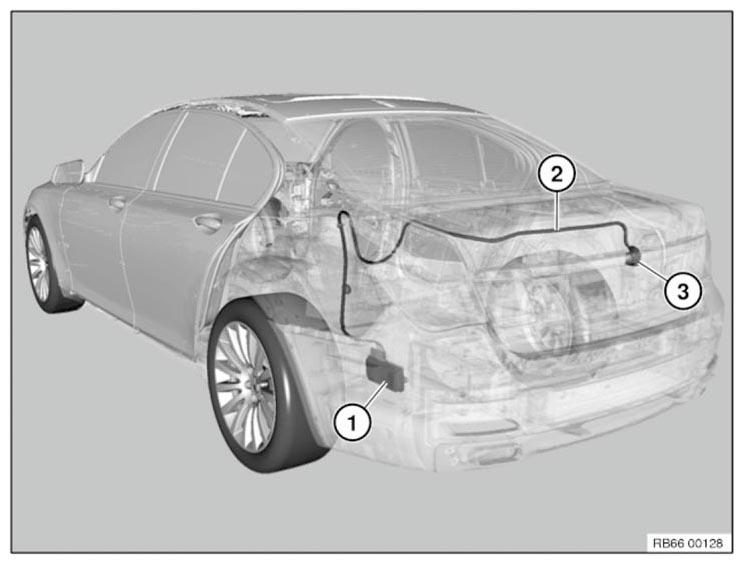

Lay repair cable from reversing camera (3) along wiring harness (2) up to TRSVC control unit (1, middle slot) and secure sufficiently.
After successful completion of function check , detach start and end of faulty cable at first mounting point.
