61 31.. Overview of switches in center console/storage compartment

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

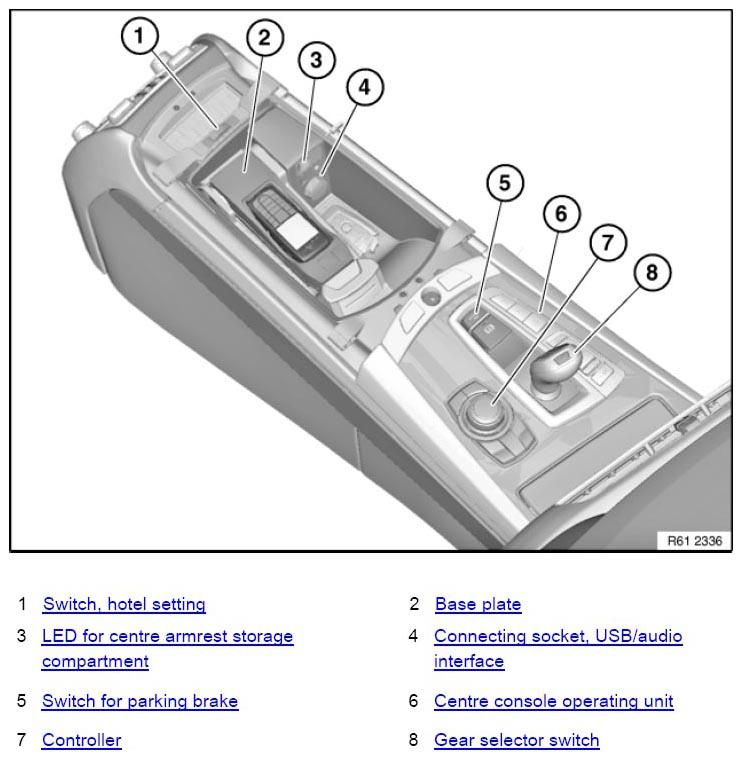

Fig 1: Identifying Switches In Center Console/Storage Compartment
G08473478Courtesy of BMW OF NORTH AMERICA, INC.
