61 31 137 Removing and installing/renewing USB interface connecting socket (version 1)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Pull off seal (2) in area of side panel (1).

Unclip side panel from dashboard (1) in direction of arrow with special tool 00 9 325 and feed out at a slant to the rear.

NOTE: Do not disconnect plug connection to switch for front passenger airbag deactivation.

Fig 1: Identifying Dashboard And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Open glove box cover

Disconnect plug connection (1).

Release retaining clamps (2).

Press out USB interface connecting socket (3) in direction of arrow.

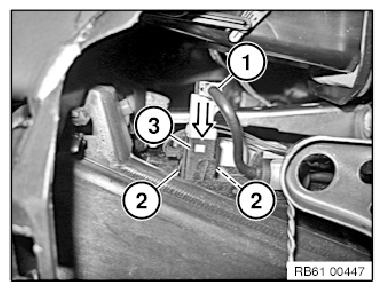

Fig 2: Pressing Out USB Interface Connecting Socket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining clips (2) must not be damaged.

Make sure USB interface connecting socket (3) is correctly seated.
