61 35 688 Replacing solar rain/light sensor and condensation sensor

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 BMW 760Li, 2015 BMW 760Li, 2014 BMW 760Li, 2013 BMW 760Li, and 2012 BMW 760Li. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

If necessary, remove INSIDE MIRROR

For equipment specifications up to 09/2009:

with 2-zone automatic air conditioning (SA 534)
with 4-zone automatic climate control (SA 4 NB)
with Head-Up Display (SA 610)

From 09/2009 onward, considered standard equipment and thus not dependent on equipment specifications.

Disconnect plug connection (2).

Unlock metal spring (3) in direction of arrow.

Remove solar rain/light and condensation sensor (1) from windscreen.

Installation note:

Close plug connection (2) only after fitting solar rain/light and condensation sensor on windscreen!

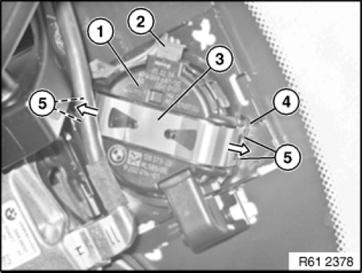

Fig 1: Removing Solar Rain/Light And Condensation Sensor From Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully clean windscreen in the contact area with the solar rain/light and condensation sensor! Remove all silicone residues.

Remove protective cover from the new solar rain/light and condensation sensor. The silicone-coated surface below it must not be touched!

Press center of metal spring (3) to ensure latch mechanism is correct in both hooks (5) on each side of retaining element (4).

NOTE:

Solar rain/light and condensation sensor is automatically coded via a terminal change (terminal 15) by junction box .
Carry out INITIALIZATION to calibrate the rain sensor to the windscreen.
