32 41... Replacing level switch for Dynamic Drive fluid reservoir
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system. Seal off pipe connections with plugs.
After installation:
- Fill and bleed hydraulic system. Refer to 32 13 006 BLEEDING POWER STEERING UNIT .
- Check pipe connections for leaks.
- If necessary, carry out initial operation for Dynamic Drive. Refer to INITIALIZING DYNAMIC DRIVE .
Necessary Preliminary Tasks:
- Draw off and dispose of hydraulic fluid.
Observe country-specific waste-disposal regulations.
- Detach fluid reservoir from holder, raise and if necessary remove sideways. Refer to 32 41 253 REMOVING AND INSTALLING / REPLACING FLUID RESERVOIR FOR POWER STEERING WITH DYNAMIC DRIVE / ACTIVE FRONT STEERING .

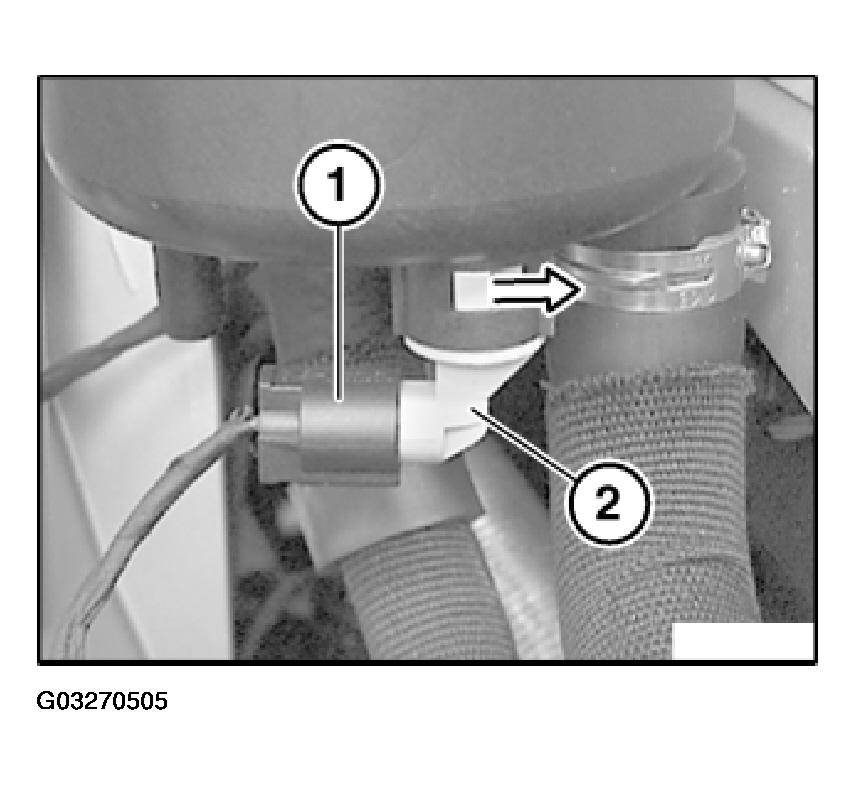

Disconnect connector (1).
Turn level switch (2) through approx. 45° and remove towards bottom.
