12 32 501 Replacing controller switch for alternator (N62, N62TU)

Necessary Preliminary Tasks:

• Notes on disconnecting and connecting battery. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
• Disconnect battery negative lead. Refer to 61 21 010 REMOVING AND INSTALLING BATTERY .
• Remove alternator. Refer to 12 31 020 REMOVING AND INSTALLING OR REPLACING ALTERNATOR (N62) .

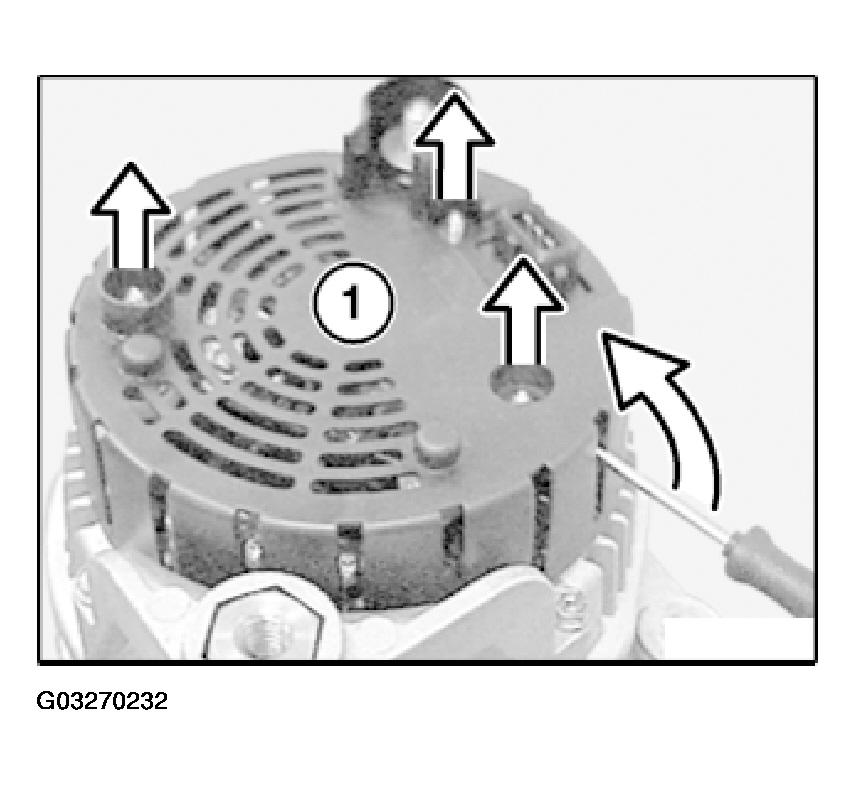

Carefully insert a screwdriver between cover (1) and threaded pin.

Lever out cover (1) towards top.

Fig 1: Removing Cover Using Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

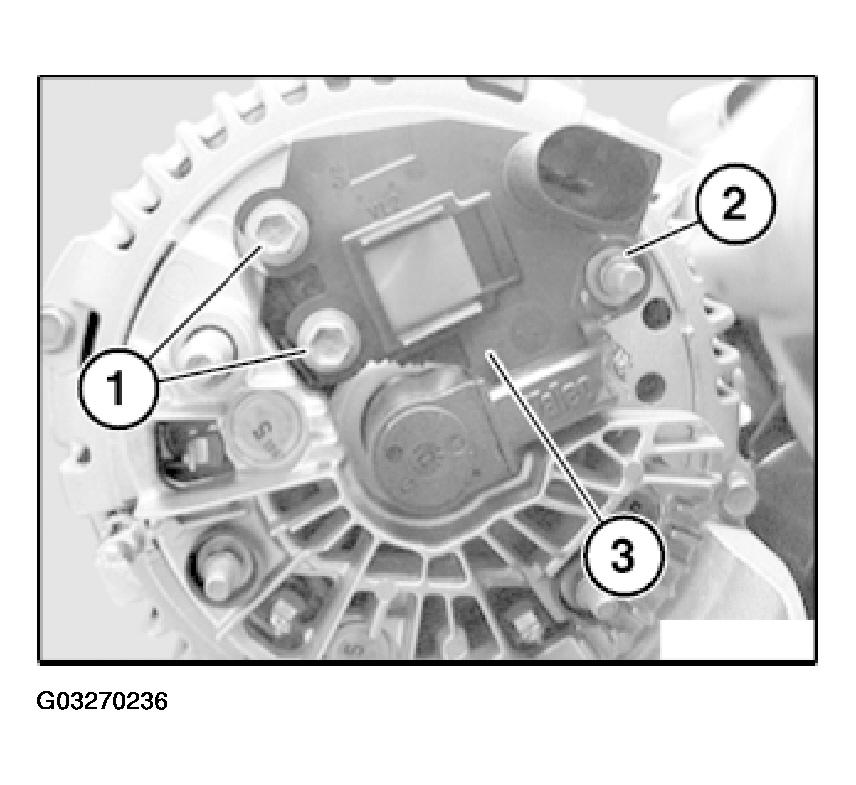

Release contact screws (1).

Unscrew nut (2).

Remove controller switch (3).

Fig 2: Identifying Controller Switch

Courtesy of BMW OF NORTH AMERICA, INC.

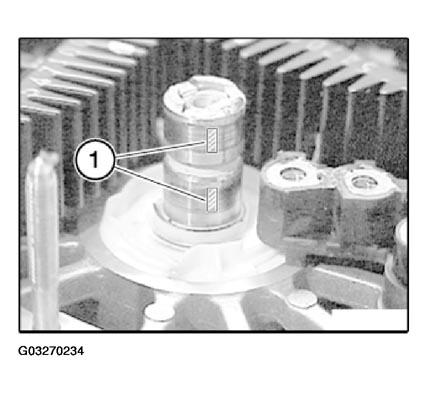

Check contact surfaces (1) of slip rings for wear and recondition if necessary.

Fig 3: Locating Contact Surfaces Of Slip Rings

Courtesy of BMW OF NORTH AMERICA, INC.

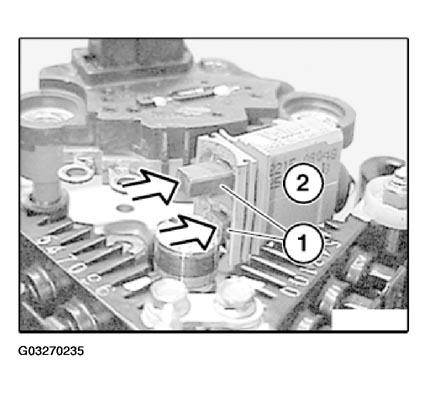

Press in carbon brushes (1) of controller switch (2) in direction of arrow.

Install controller switch (2).

Fig 4: View Of Controller Switch Carbon Switches

Courtesy of BMW OF NORTH AMERICA, INC.

Insert and tighten down contact screws (1).

Insert nut (2) and tighten down.

Fig 5: Locating Contact Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble alternator.

Assemble engine.

Carry out alternator test with diagnostic system.
