00 00 ... Changing differential oil

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Change oil with rear axle differential at normal operating temperature.

Final drive oil, refer to Service Information Operating Fluids .

Filling quantity, initial fill, 1.4 Liters.

Unscrew drain plug (2), clean and reinstall.

Unscrew the filler screw plug (1).

Pour in differential oil until overflowing. Install filler screw plug (1).

Installation:

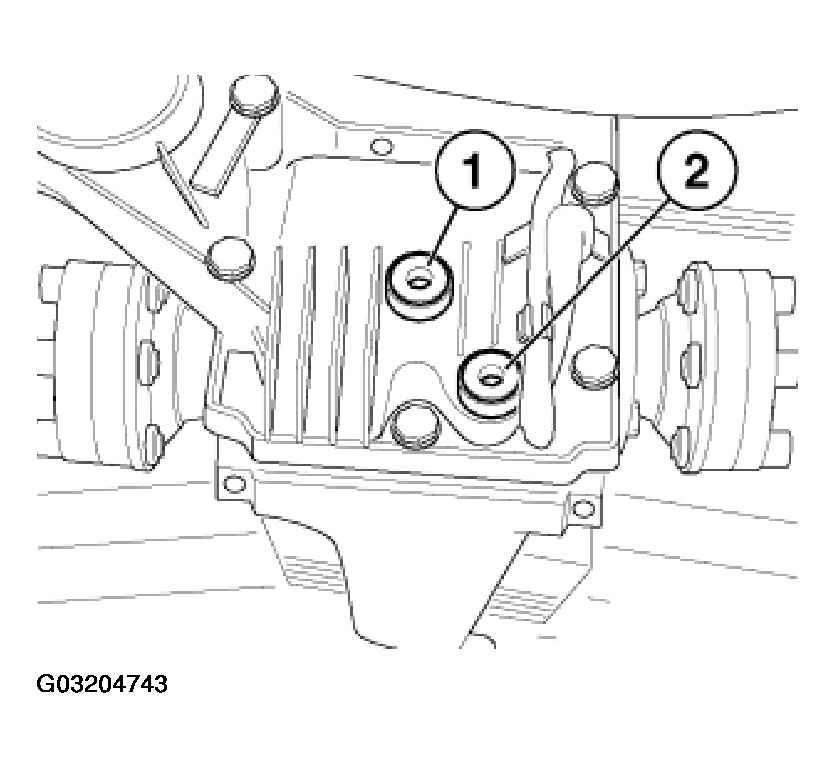

Fig 1: Identifying Filler Screw Plug And Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening Torque, refer to Tightening Torques.
