32 31 070 Removing and installing/replacing lower section of steering shaft: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
If the lower section of the steering spindle is separated from the steering gear/steering spindle middle section, the steering column switch cluster may be damaged when the steering wheel is turned.
Secure steering wheel from turning!
Necessary preliminary tasks:
- Remove CHARGE-AIR DUCT

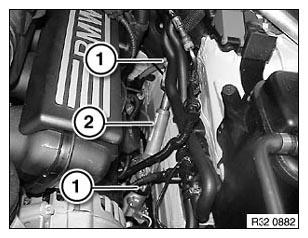

Release clamping screws (1).
Push steering spindle (2) together and remove.
Installation:
Clean thread to remove all remnants of screw securing adhesive.
Replace clamping screws.
Connect steering spindle first to steering gear and then to steering spindle middle section.
Clamping screw must rest in steering gear groove or steering spindle middle section.
No kinking permitted!
Tightening torque 32 31 2AZ .
