32 41... Replacing pressure line for Dynamic Drive (part 2) (N54): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.

Recycling:

Catch and dispose of hydraulic fluid in a suitable container.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
Remove underbody protection incl. cover. See 51 47... REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT UNDERBODY PANELLING and 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION .
Remove REINFORCEMENT PLATE
Partially remove FRONT RIGHT WHEEL ARCH COVER (REAR SECTION)

Picture shows M57T2

Release banjo bolt (1).

From build date 10/08, release hexagon socket bolts from flange (1).

Tightening torque 32 41 11AZ (banjo bolt).

Tightening torque 32 41 7AZ (bolt).

Seal pressure lines with suitable sealing plugs.

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

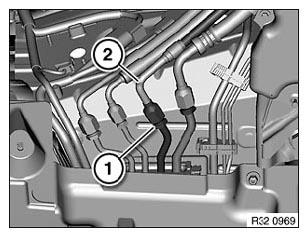

Fig 1: Identifying Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove heat shield (2).

Installation:

Tightening torque 32 41 14AZ .

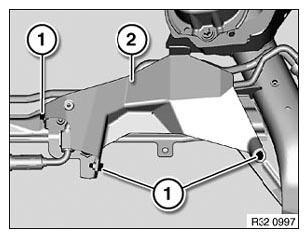

Fig 2: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove pressure line (2) from decoupling element.

Tightening torque 32 41 7AZ .

Installation:

Replace self-locking nuts.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

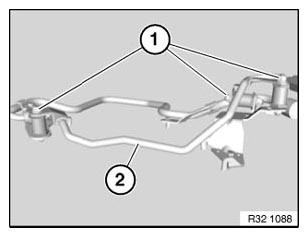

Fig 3: Identifying Pressure Line With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release banjo bolt (1).

Seal pressure lines with suitable sealing plugs.

Remove pressure line (2).

Installation:

Hydraulic lines are not permitted to contact each other or adjoining components.

Tightening torque 37 14 15AZ .

Fig 4: Identifying Pressure Line And Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
