32 41... Replacing pressure line for Dynamic Drive (part 1) (N54): Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2014 BMW X6, 2013 BMW X6, 2012 BMW X6, 2011 BMW X6, and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with plugs.

IMPORTANT: It is essential to adhere to conditions of absolute cleanliness when working on the fuel system.

Do not allow any dirt particles or foreign bodies to get into the system
Use only fluff-free cloths
Remove all traces of dirt before removing pipes or individual components
Seal all fuel system openings with protective caps

Recycling:

Catch and dispose of escaping fuel.

Catch and dispose of hydraulic fluid in a suitable container.

Necessary preliminary tasks:

Draw off and dispose of hydraulic fluid from fluid reservoir
Remove underbody protection incl. cover. See 51 47 490 REMOVING AND INSTALLING/REPLACING FRONT UNDERBODY PROTECTION , 51 47 491 REMOVING AND INSTALLING/REPLACING REAR UNDERBODY PROTECTION , 51 71... REMOVING AND INSTALLING/REPLACING BOTTOM LEFT OR RIGHT STEERING GEAR COVER , 51 71... REMOVING AND INSTALLING/REPLACING TOP LEFT STEERING GEAR COVER , 51 71... REMOVING AND INSTALLING/REPLACING TOP RIGHT STEERING GEAR COVER .
Remove REINFORCEMENT PLATE
Clamp off BATTERY NEGATIVE LEAD
Drain COOLANT .
Remove ACOUSTIC COVER
Remove TENSION STRUT FROM SPRING STRUT DOME ON LEFT
Disconnect coolant hoses above pressure line, remove if necessary
Disconnect fuel feed and return lines above pressure line Open cover.

Release nut and remove battery positive lead (1) from battery positive terminal.

Fig 1: Locating Battery Positive Lead

Courtesy of BMW OF NORTH AMERICA, INC.

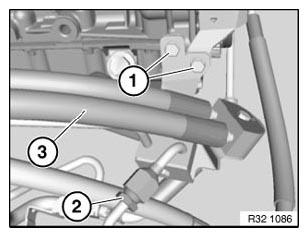

Release hexagon socket screws from flange (1) and remove pressure line.

Tightening torque 32 41 16AZ .

Seal pressure line and power steering pump connection with suitable sealing plugs.

Installation:

Replace all sealing rings.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 2: Locating Hexagon Socket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

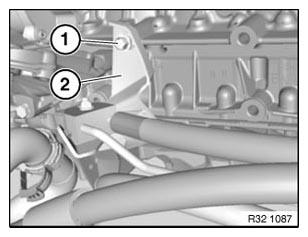

Release bolts (1) and remove bracket (2) from crankcase on left.

Tightening torque 32 41 18AZ .

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 3: Identifying Bracket Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

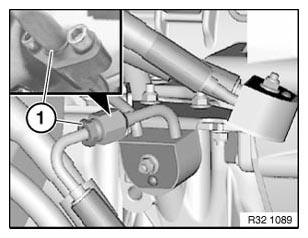

Release bolts (1) and remove holder with expandable hose (3).

Tightening torque 32 41 18AZ .

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 4: Identifying Expandable Hose With Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows M57T2.

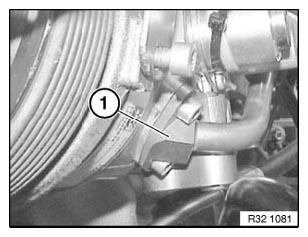

Release banjo bolt (1).

From build date 10/08, release hexagon socket bolts from flange (1).

Tightening torque 32 41 11AZ (banjo bolt).

Tightening torque 32 41 16AZ (hexagon socket bolts).

Seal pressure lines with suitable sealing plugs.

Installation:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 5: Identifying Banjo Bolt

Courtesy of BMW OF NORTH AMERICA, INC.
