61 13... Removing And Installing/Replacing Fiber-Optic Cable Connector

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 BMW 128i, 2012 BMW 128i, 2011 BMW 128i, 2010 BMW 135i, and 2010 BMW 128i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Comply with notes and instructions on handling optical waveguides .

Necessary preliminary tasks:

Remove amplifier . See 65 12 072 REMOVING AND INSTALLING (REPLACING) AMPLIFIER (TOP HIFI SYSTEM) .

Unlock catch (1) and remove deflection roller (2) from holder.

Remove adhesive tape (4).

Unlock catch on fiber-optic cable connector (5) with a suitable tool (3).

Remove fiber-optic cable connector (5) in direction of arrow from deflection roller (2).

Installation:

Secure fiber-optic cable connector (5) with adhesive tape to deflection roller (2).

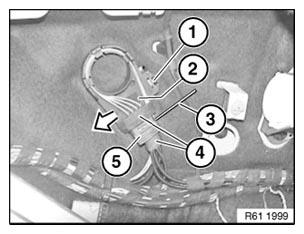

Fig 1: Identifying Adhesive Tape, Deflection Roller & Catch

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise cover cap (1) with a suitable tool and remove from fibre-optic cable connector (2).

Fig 2: Removing Fiber-Optic Cable Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully raise lock (1) and pull fibre-optic cable (2) out of fiber-optic cable connector (3).

Installation:

Make sure fiber-optic cable (2) is correctly seated and engaged in fiber-optic cable connector (3).

Fig 3: Identifying Fiber-Optic Cable & Connector With Lock

Courtesy of BMW OF NORTH AMERICA, INC.
