Removal & Installation (V8)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 1997 BMW Z3, 1997 BMW M3, 1997 BMW 840Ci, 1997 BMW 740iL, and 1997 BMW 740i. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover. See Figure. Locate sensor on front of right cylinder head. Remove sensor. See Fig 1. Disconnect connector located on top of engine at harness conduit.

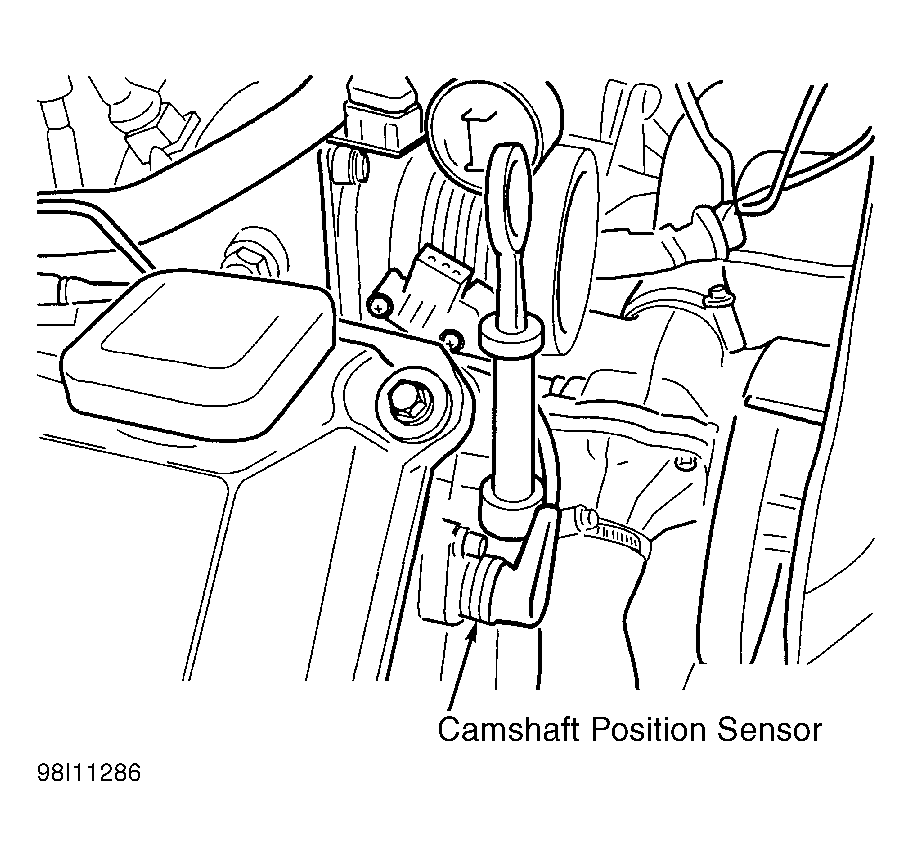

Fig 1: Removing Camshaft Position Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
