Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2005 BMW X5, 2004 BMW X5, 2003 BMW X5, and 2002 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

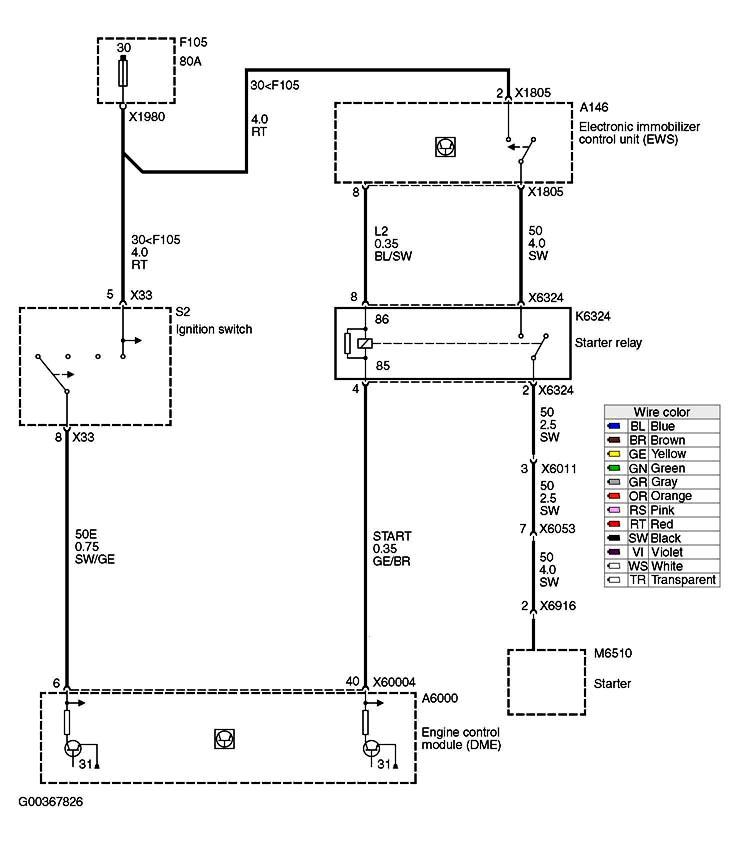

Fig 1: Starter System Wiring Diagram (Up To 03/02)

Courtesy of BMW OF NORTH AMERICA, INC.

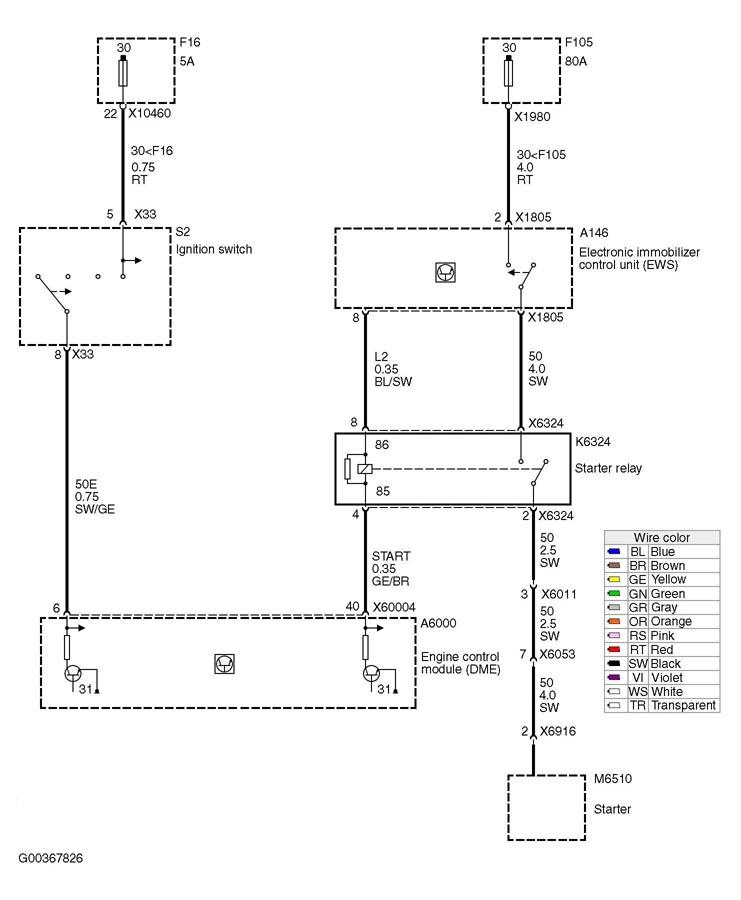

Fig 2: Starter System Wiring Diagram (As Of 03/02)

Courtesy of BMW OF NORTH AMERICA, INC.
