32 41... Instructions For Removing And Installing Ear Clips

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE: The work steps are show on assorted components.
Ear clip must always be replaced.

To remove an ear clip, place special tool 32 1 260  at right angles to ear and cut ear open.

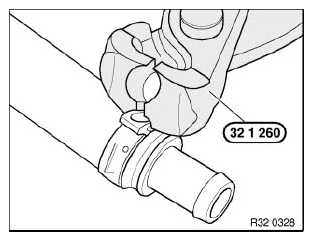

Fig 1: Identifying Special Tool (32 1 1260)
G04726374Courtesy of BMW OF NORTH AMERICA, INC.

The ear clip can be fitted not only axially but also radially after the hook fastener has been opened.

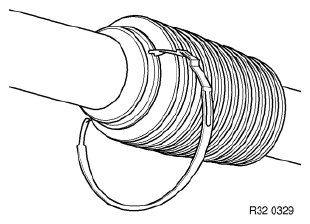

Fig 2: Identifying Ear Clip
G04726375Courtesy of BMW OF NORTH AMERICA, INC.

Attach hook fastener and press ear together with special tool 32 1 260  .

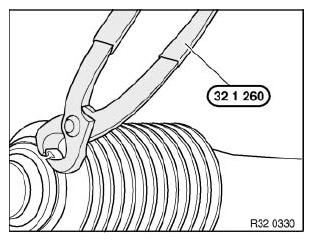

Fig 3: Identifying Special Tool (32 1 1260)
G04726376Courtesy of BMW OF NORTH AMERICA, INC.

Side cutter of special tool 32 1 260  can be used in areas which are difficult to access.

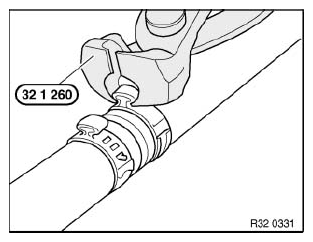

Fig 4: Identifying Special Tool (32 1 1260)
G04726377Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Gap (A) max. 1 mm!
Fig 5: Checking Clamp Gap
G04726378Courtesy of BMW OF NORTH AMERICA, INC.
