33 00... Rear Axle: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.
A wheel/chassis alignment check must be carried out after the following work. See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE-HEIGHT MEASUREMENT WITHOUT LOAD .
- Release of following screw/bolt connections:
- Swinging arm, front/rear, to rear axle carrier
- Swinging arm to integral link/wheel carrier
- Integral link to wheel carrier
- Guide arm to rear axle carrier
- Control arm to rear axle carrier

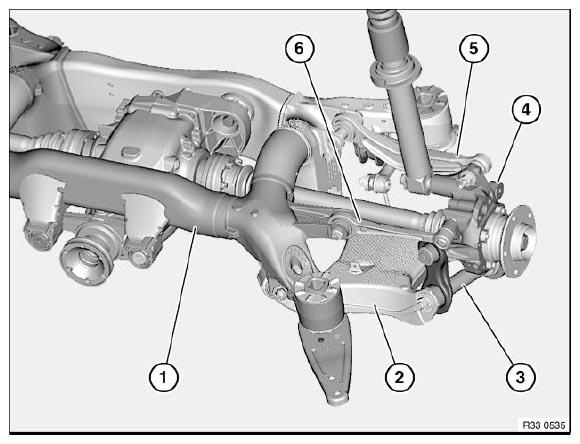

- Replacement of following parts:
- Rear axle carrier
- Swinging arm
- Integral link
- Wheel carrier/ball joint
- Control arm
- Guide arm
