31 00... Front Axle + Steering: Wheel/Chassis Alignment Check Must Be Carried Out After The Following Work
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW 750i, 2008 BMW 750Li, 2007 BMW 750i, 2007 BMW 750Li, and 2006 BMW 750i. However, it is still accessible from the selected car via links, so may be relevant.

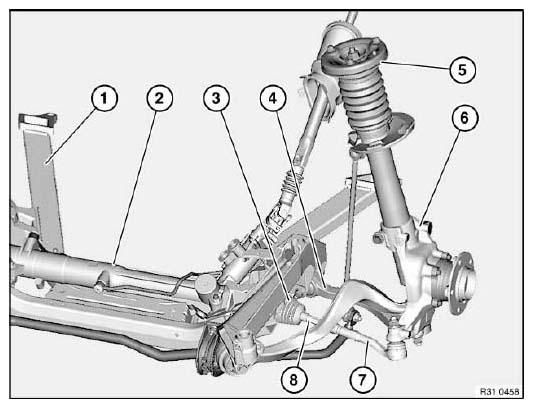

A wheel/chassis alignment check must be carried out after the following work. See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE-HEIGHT MEASUREMENT WITHOUT LOAD .
- Release of following screw/bolt connections:
- Steering gear to front axle carrier
- Control arm to front axle carrier
- Support bearing to body (if centering pin is missing)
- Tie rod end to tie rod
- Replacement of following parts:
- Front axle carrier
- Steering gear
- Gaiter (if the tie rod end has to be screwed off)
- Control arm
- Support bearing (if centering pin is missing)
- Swivel bearing
- Tie rod end
- Tie rod
