34 32... Overview Of Brake Lines

WARNING: This page is about a different car, the 2010 BMW M5, 2009 BMW M5, 2008 BMW M5, 2007 BMW M5, and 2006 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

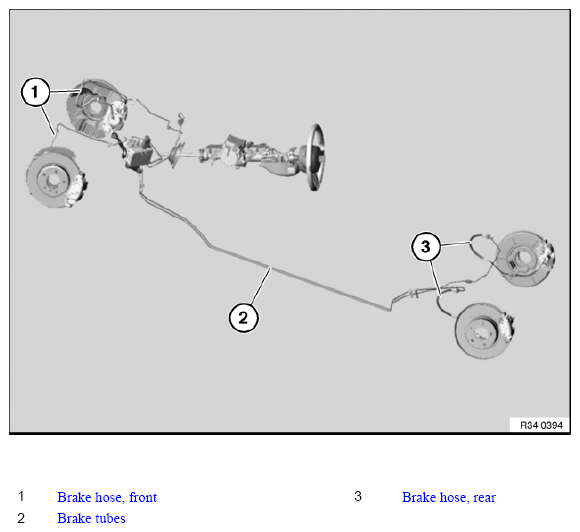

Fig 1: Identifying Brake Lines Components
G04742660Courtesy of BMW OF NORTH AMERICA, INC.
