Camber Adjustment: Rear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace hexagon collar nut (1). Ensure eccentric washer is correctly located (2). See Fig 1. Tighten hexagon collar nut (1) to specification. See TORQUE SPECIFICATIONS .
  2. Loosen hexagon collar nut (1) by 1/2 turn.
    CAUTION: If the nut (1) is tightened down more than 10 times during adjustment, it must be replaced again. The self-locking effect becomes too slight.
  3. Adjust camber with eccentric screw. Adjust to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
  4. Ensure eccentric washer is correctly located between the stops (1). See Fig 2. Tighten hexagon collar nut to specification. See TORQUE SPECIFICATIONS .
  5. Adjust toe-in. See TOE-IN ADJUSTMENT .

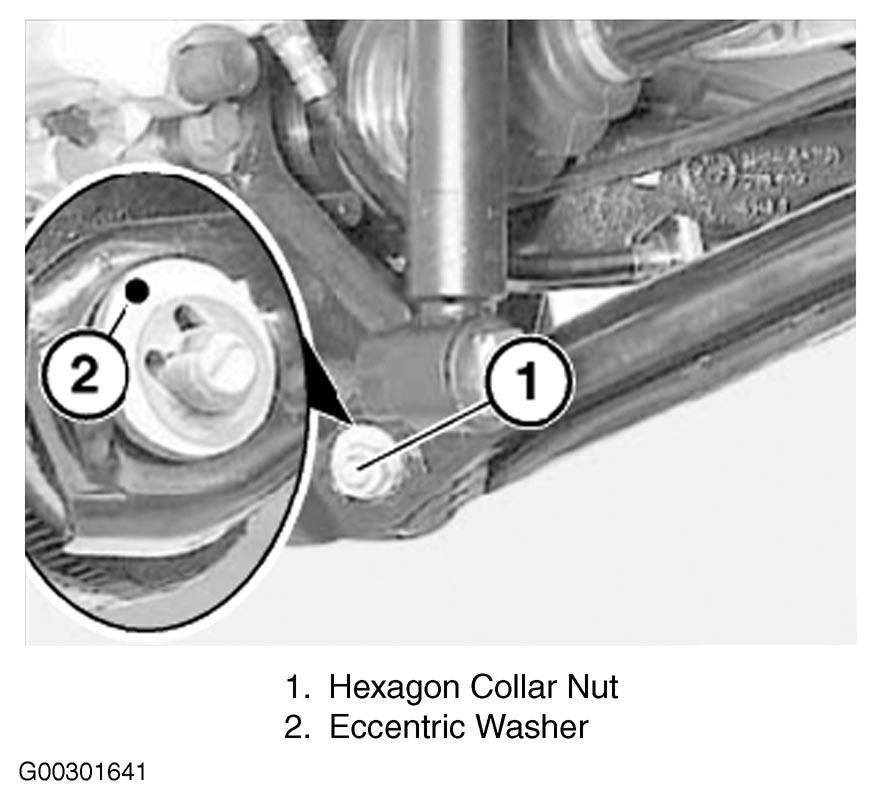

Fig 1: Adjusting Camber (Rear - 1 Of 2)
G00301641Courtesy of BMW OF NORTH AMERICA, INC.

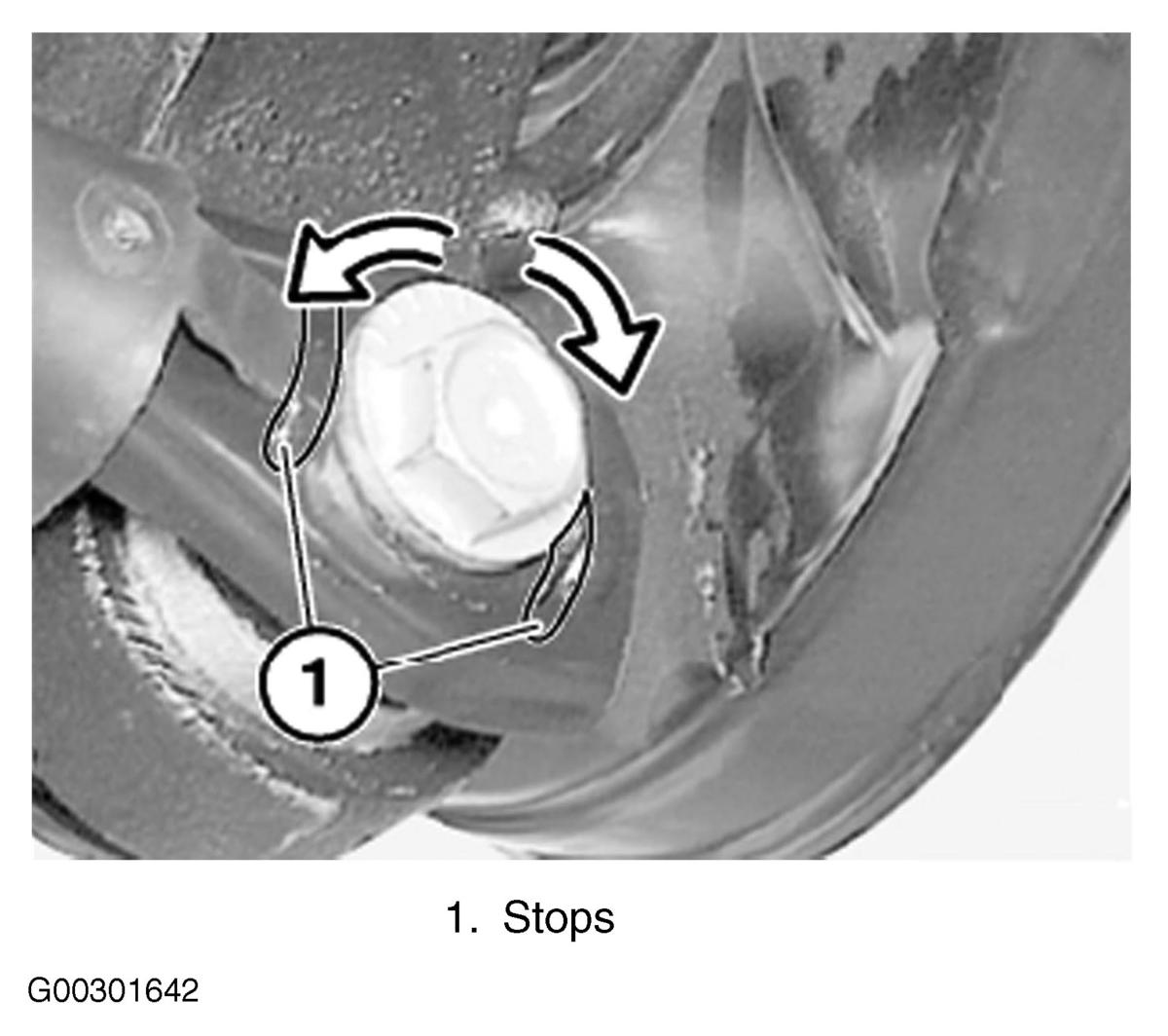

Fig 2: Adjusting Camber (Rear - 2 Of 2)
G00301642Courtesy of BMW OF NORTH AMERICA, INC.
