84 11 519 Removing and installing/replacing eject box

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2007 BMW 335xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 340

Pull off gaiter (1) towards top.

Disconnect plug connection (2).

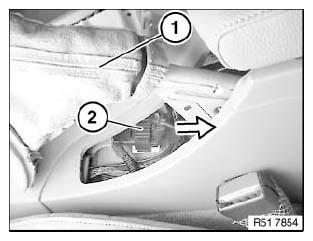

Fig 1: Identifying Gaiter And Plug Connection

G04728099

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out eject box (1) with special tool 00 9 340 on inner side of trim (2).

Pull eject box (1) on inner side upwards slightly.

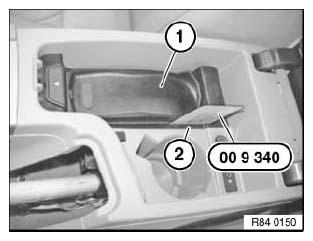

Fig 2: Identifying Eject Box, Side Trim And Special Tool (00 9 340)

G04728100

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out eject box (1) with special tool 00 9 340 on outer side of trim (2).

Lift out eject box (1) and feed out cable.

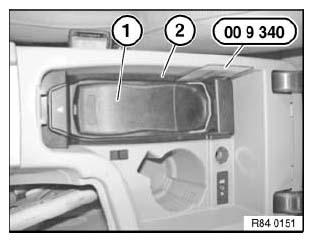

Fig 3: Identifying Eject Box, Side Trim And Special Tool (00 9 340)

G04728101

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim (2) must not be damaged or missing.

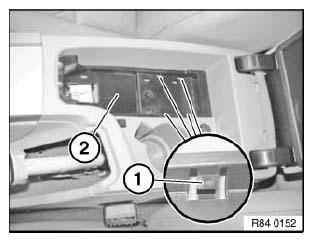

Fig 4: Identifying Catches And Trim

G04728102

Courtesy of BMW OF NORTH AMERICA, INC.
