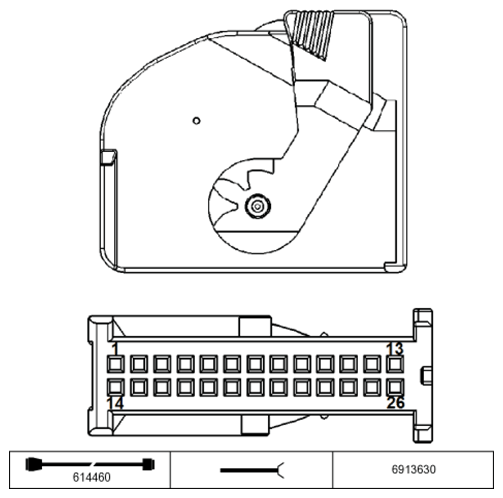

Footwell Module SX14259A Connector End View
Pin Assignments At Plug Connector X14259
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Signal, front side marker light | Steering column switch cluster |
| 2 | E | Signal, low beam switch | Steering column switch cluster |
| 3 | E | Signal, left direction indicator light | Steering column switch cluster |
| 4 | E | Signal, right direction indicator light | Steering column switch cluster |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | E | Signal, headlight beam height control | Steering column switch cluster |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | A | Signal Selector lever and gear indicator lighting | Gear indicator lighting |
| 12 | A | Supply, interior lights | Footwell light, front left Footwell light, front right |
| 13 | -- | Not occupied | |
| 14 | -- | Not occupied | |
| 15 | -- | Not occupied | |
| 16 | E | Signal, high beam/headlight flasher switch | Steering column switch cluster |
| 17 | -- | Not occupied | |
| 18 | E | Signal, hazard warning switch | Hazard warning switch |
| 19 | -- | Not occupied | |
| 20 | A | Signal, LED hazard flasher switch | Hazard warning switch |
| 21 | A | Signal, terminal 58G | Connector, instrument and locator lighting |
| 22 | -- | Not occupied | |
| 23 | -- | Not occupied | |
| 24 | -- | Not occupied | |
| 25 | -- | Not occupied | |
| 26 | -- | Not occupied |
