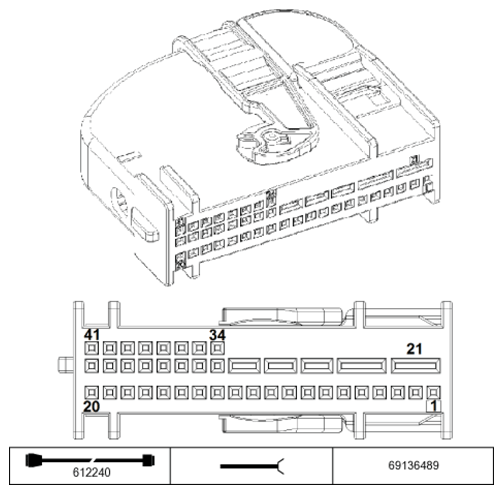

A96b Convertible Top Module SX13037A Connector End View
Pin Assignments At Plug Connector X13037
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Terminal 15 | Car access system |
| 2 | A | Activation, green LED | Roof operating unit |
| 3 | -- | Not occupied | |
| 4 | E | Signal Hall sensor, crash lock | Hall sensor, crash lock |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | -- | Not occupied | |
| 12 | -- | Not occupied | |
| 13 | E | Signal Bottom microswitch, rear window shelf | Bottom microswitch, rear window shelf |
| 14 | E | Signal Open convertible top | Roof operating unit |
| 15 | -- | Not occupied | |
| 16 | E | Signal Close convertible top | Roof operating unit |
| 17 | -- | Not occupied | |
| 18 | -- | Not occupied | |
| 19 | E/A | Signal K-CAN-peripheral bus | K-CAN-peripheral bus |
| 20 | E/A | Signal K-CAN-peripheral bus | K-CAN-peripheral bus |
| 21 | M | Ground | Ground connection X6454 |
| 22 | E | Power supply, convertible top module | Fuse F6 |
| 23 | A | Signal Drive unit, lock and sliding canvas sunroof | Drive unit, lock and sliding canvas sunroof |
| 24 | A | Signal Drive unit, lock and sliding canvas sunroof | Drive unit, lock and sliding canvas sunroof |
| 25 | -- | Not occupied | |
| 26 | E | Signal Hall sensor, crash lock | Hall sensor, crash lock |
| 27 | -- | Not occupied | |
| 28 | -- | Not occupied | |
| 29 | -- | Not occupied | |
| 30 | -- | Not occupied | |
| 31 | -- | Not occupied | |
| 32 | -- | Not occupied | |
| 33 | -- | Not occupied | |
| 34 | -- | Not occupied | |
| 35 | -- | Not occupied | |
| 36 | -- | Not occupied | |
| 37 | -- | Not occupied | |
| 38 | A | Activation Relay, convertible top 1 | Relay, convertible top 1 |
| 39 | A | Activation Relay, convertible top 2 | Relay, convertible top 2 |
| 40 | -- | Not occupied | |
| 41 | -- | Not occupied |
