Section 1986 (General Electrical System - Repair - Clubman (R55))
>>
Control Units, Modules, Sensors, Aerials
>>
61 35... Overview of control units
61 35... Overview of control units
WARNING:
This page is about a different car, the 2010 MINI Cooper, 2009 MINI Cooper, and 2008 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

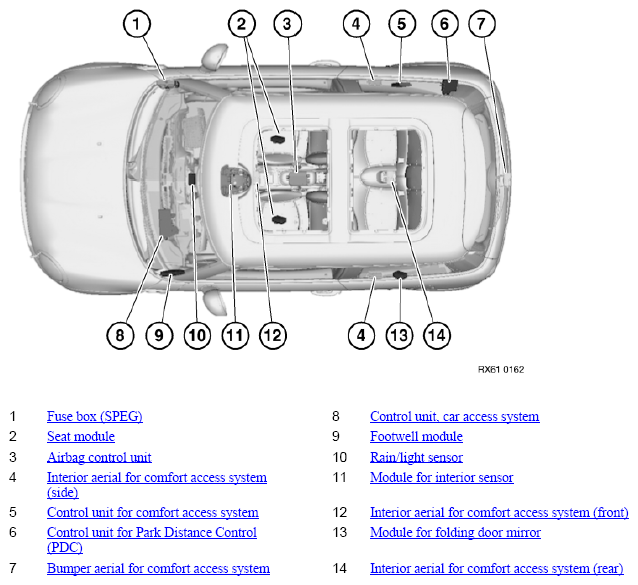

Fig 1: Overview Of Control Units
Courtesy of BMW OF NORTH AMERICA, INC.
