Red Or Blue Cap Missing From Temperature Control Wheel (M64 01 13)
Publication date: 2013-04-01Reference number: M64 01 13
RED OR BLUE CAP MISSING FROM TEMPERATURE CONTROL WHEEL
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI M64 01 13, Date of Issue:
April 2013
| MINI: | R55; R56; R57; Produced to July 31, 2010 with option 0534 (automatic air conditioning) |
| GROUP: | Heating and Air Conditioning |
SUBJECT
Red or Blue Cap Missing from Temperature Control Wheel
SITUATION
The customer states the red or blue cap is missing from the temperature control wheel of the heat and air conditioning control panel.
PROCEDURE
- The red and blue caps can now be replaced separately. Note: Replacement of the complete heat and air conditioning panel is no longer permitted for this complaint. Replace the missing cap(s).

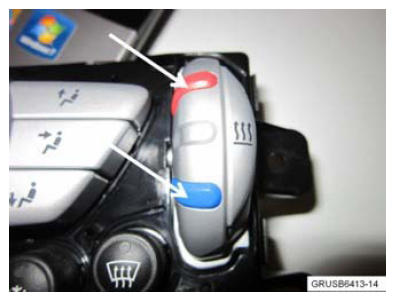

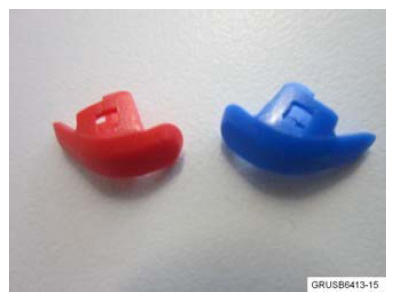

- The red and blue caps come as a set, and only the missing part needs to be replaced. Press the appropriate color cap into the opening (red towards the top and blue towards the bottom).
PARTS INFORMATION
PARTS INFORMATION
| Part Number | Description | Quantity |
|---|---|---|
| 64 11 9 318 950 | Temperature control caps (blue and red) | 1 |
WARRANTY INFORMATION
Covered under the terms of the MINI New Passenger Car Limited Warranty.
WARRANTY INFORMATION
| Defect Code: | 64 11 64 13 00 | |
|---|---|---|
| Labor Operation: | Labor Allowance: | Description: |
| 64 99 000 | 3 FRU | Work time to complete the repair procedure (Main work) |
| or | ||
| 64 99 000 | 1 FRU | Work time to complete the repair procedure (Plus work - vehicle is already in the workshop) |
