Electrical Contact Release Kit (M04 03 06)

Publication date: 2015-01-01
Reference number: M04 03 06

ELECTRICAL CONTACT RELEASE KIT

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M04 03 06, Date of Issue: January 2015

MINI:	All Models
GROUP:	Tools and Equipment

Superceded Bulletin(s): SI M04 03 06, Date of Issue: April 2006

This Service Information bulletin supersedes SI M04 03 06 dated April 2006.

SUBJECT

Electrical Contact Release Kit

SITUATION

Distribution of the following tool through the Automatic Tool Shipment Program is complete. Additional tools may be purchased through your RDC.

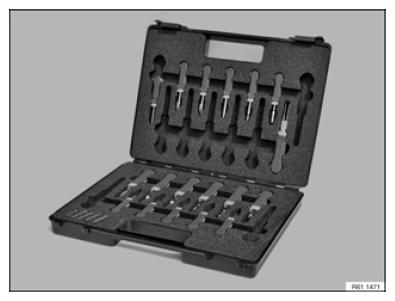

Electrical Contact Release Kit

Order P/N 83 30 0 495 382

Cartool P/N 610 300

Price = Refer to ATLAS

The contact release kit has been updated and modified to fully meet the needs set forth by the vehicle connector manufacturers. Utilizing this kit ensures that the connectors will not be harmed during R & R. The handles have a protective bar which, when slid over the tip of the tool, prevents the tool from damage if the tool is dropped.

Previously distributed release set P/N 611 150 is superseded by this tool set, but can still be used for repairs.

A complete set of operating instructions comes with the kit.

REPLACEMENT PART NUMBERS

6-Digit Part Number	Ordering Part Number
610 301	83 30 0 495 383
610 303	83 30 0 495 385
610 305	83 30 0 495 387
610 307	83 30 0 495 389
610 312	83 30 0 495 394
610 313	83 30 0 495 395
610 314	83 30 0 495 396
610 315	83 30 0 495 397
610 316	83 30 0 495 398
610 317	83 30 0 495 399
610 318	83 30 0 495 400
610 321	83 30 0 495 403
610 331	83 30 0 495 680
610 322	83 30 0 495 404
610 323	83 30 0 495 405
610 324	83 30 0 495 406
610 325	83 30 0 495 578
610 326	83 30 0 495 676
610 327	83 30 0 495 677
610 328	83 30 0 495 678
610 329	83 30 0 495 407
610 332	83 30 0 496 332
610 333	83 30 0 495 333
610 390	83 30 0 495 391

SPECIAL TOOL WARRANTY INFORMATION

Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:

Go to TIS.
Select "Tools and Equipment."
Select "Special Tool Parts Warranty."
