Throttle-Valve Icing

The following illustrations show the possible ice formation or water accumulation in the area of the throttle valve (good lighting is required).

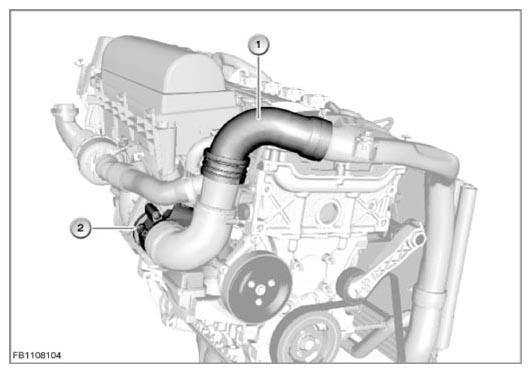

Fig 1: Identifying Air Intake Hose And Throttle Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Air intake hose
2	Throttle valve

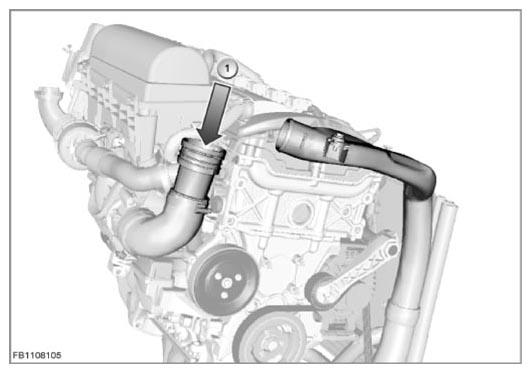

Fig 2: Removing Air Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Direction of vision towards the intake area (air intake hose removed)

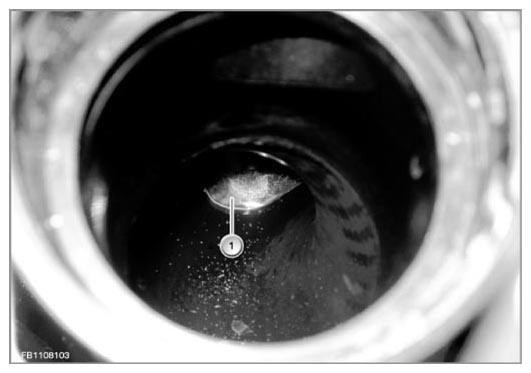

Fig 3: Identifying Ice Formation Of Throttle Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Item	Explanation
1	Ice formation (when melted, also water)
