41 00... Gap dimensions, body

WARNING: This page is about a different car, the 2010 MINI Cooper and 2009 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Symmetry of the gaps between left and right sides of the vehicle has top priority.

The door gaps must not deviate between the front and rear gap by more than 1.0 mm.

Adjust headlight and tail light with constant all-round gap (visually).

Dimensions in mm

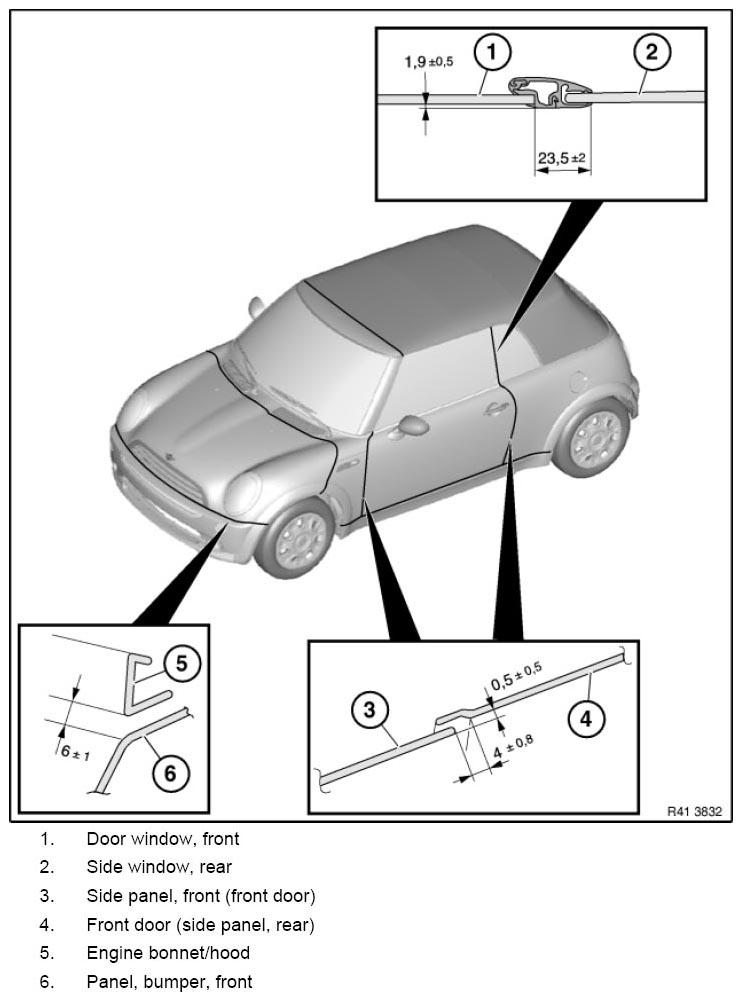

Fig 1: Gap Dimension, Body (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

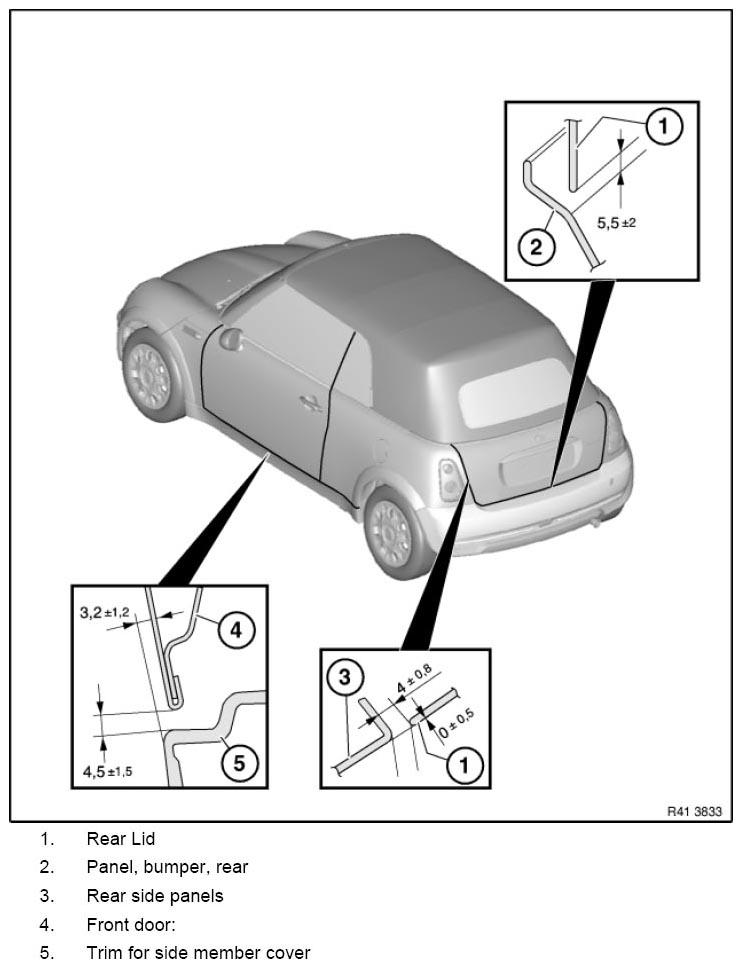

Fig 2: Gap Dimension, Body (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
