31.... Overview of front differential/output shafts

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

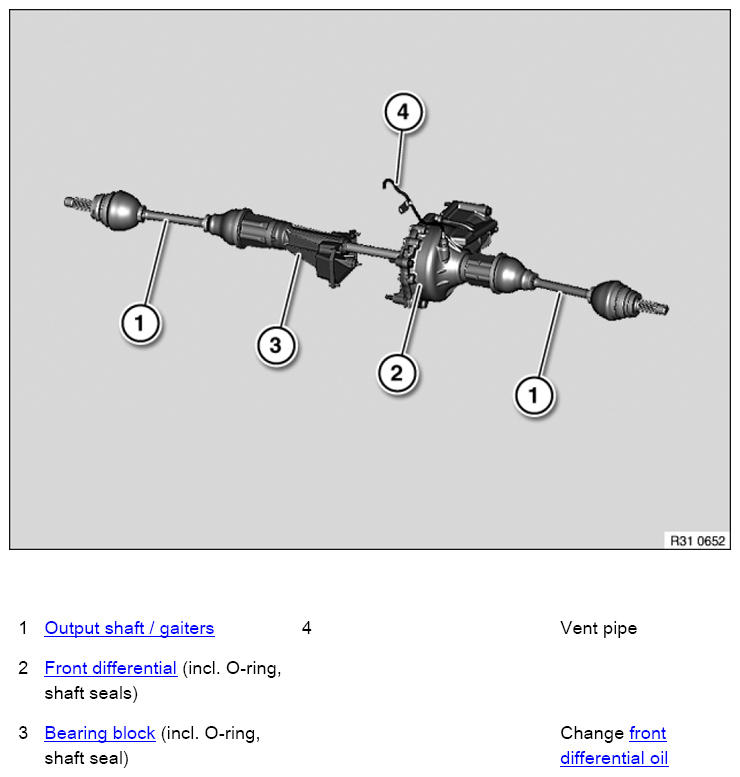

Fig 1: Overview Of Front Axle Differential/Output Shafts
G08527591Courtesy of BMW OF NORTH AMERICA, INC.
