61 31 334 Removing and installing/replacing grip trim for gear selector switch

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 030

Turn circlip (1) in direction of arrow and remove.

Installation:

Make sure circlip (1) is correctly seated.

Fig 1: Removing Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tool 64 1 030 into trim (1) from below and carefully pull trim (1) away in the direction of the arrow.

Remove symbol plate (2).

Installation:

To facilitate fitting, secure pushbutton (3) with adhesive tape on trim (1).

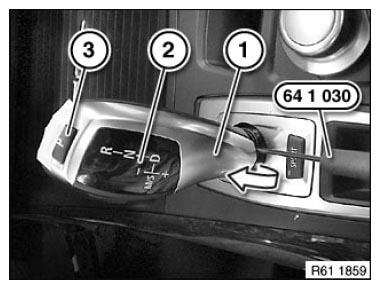

Fig 2: Removing Symbol Plate Using Special Tool (64 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.
