61 31 214 Removing and installing/replacing switch for Electronic Damper Control (Sport switch)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR GEAR SELECTOR SWITCH

Release screws (1).

Raise trim (2) slightly.

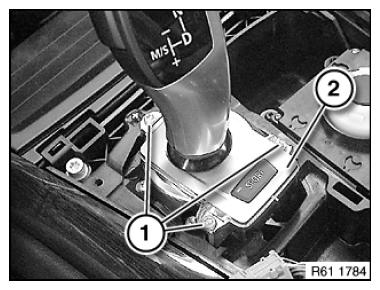

Fig 1: Identifying Gear Selector Switch Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Plug connection (1) must not be disconnected.

Unlock switch for Electronic Damper Control (2) and remove downwards from trim.

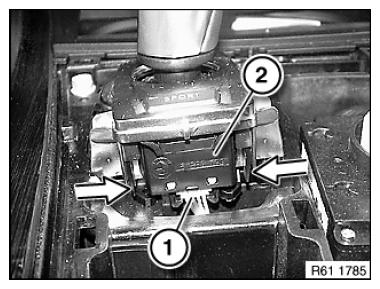

Fig 2: Identifying Electronic Damper Control And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure switch for Electronic Damper Control (2) engages correctly on trim.

Remove GEAR SELECTOR SWITCH CARRIER (3) .

Disconnect plug connection (1).

Feed wiring harness (2) in direction of arrow out of gear selector switch carrier (3) and remove switch for Electronic Damper Control.

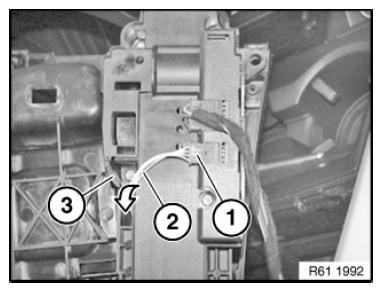

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
