61 31 193 Removing and installing/replacing button unit (menu/voice input)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CENTRE CONSOLE TRIM

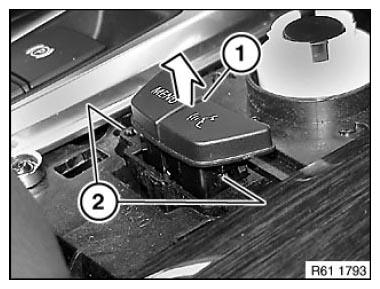

Unlock catches (2) and feed button unit (1) in direction of arrow out of controller.

Fig 1: Removing Feed Button Unit From Controller

Courtesy of BMW OF NORTH AMERICA, INC.

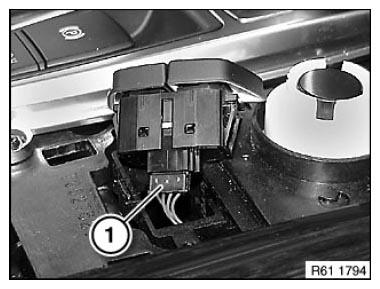

Disconnect plug connection (1) and remove button unit.

Fig 2: Identifying Button Unit Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
