61 31 133 Removing and installing/replacing AV connection socket

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 323

Necessary preliminary tasks:

Open storage compartment

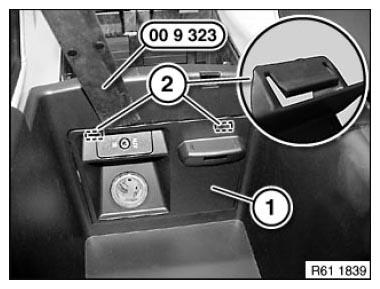

Use special tool 00 9 323 to release retaining tabs (2) and remove trim (1) from storage compartment.

Disconnect associated plug connections and remove cover (1).

Fig 1: Disconnecting Associated Plug Connection Cover

Courtesy of BMW OF NORTH AMERICA, INC.

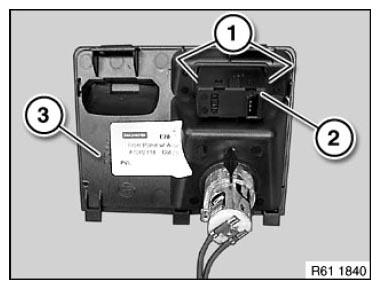

Unlock retaining tabs (1) and feed out AV connection socket (2) to front side of trim (3).

Fig 2: Identifying AV Connection Socket, Retaining Tabs And Front Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.
