61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LEFT FRESH-AIR GRILLE

Press out light control unit (1) from inside.

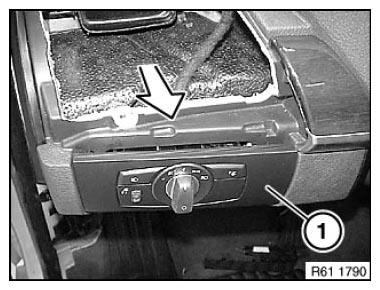

Fig 1: Removing Light Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Remove light control unit.

Installation:

Make sure retainers (2) are correctly seated on trim of light control unit.

If necessary, replace faulty retainers.

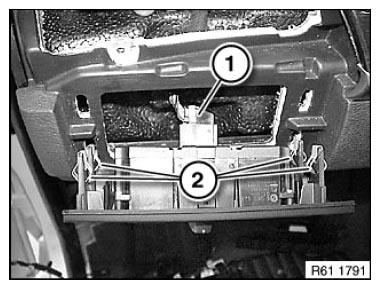

Fig 2: Identifying Plug Connection And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1).

Remove light control unit (2) from trim (3).

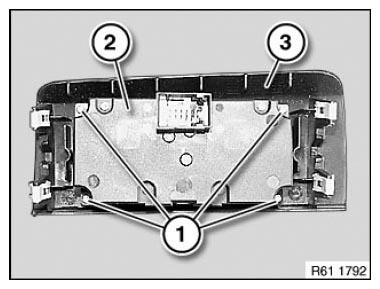

Fig 3: Identifying Light Control Unit, Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
