61 13... Main relay connector for DME

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

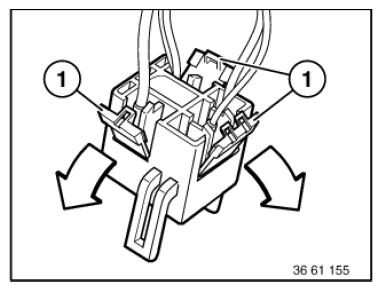

Open locking clamp (1) for the corresponding cable.

Fig 1: Disconnecting Connector Locking Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

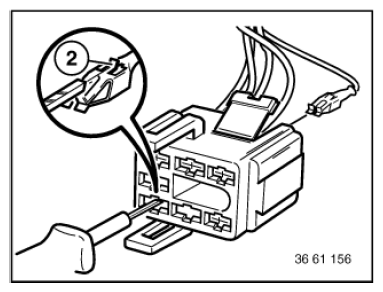

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (2) of appropriate contact and pull out cable with contact.

Fig 2: Pressing Back Retaining Hooks Using Special Tool (61 1 136) Or (61 1 137)

Courtesy of BMW OF NORTH AMERICA, INC.
