61 13... Fuse holder

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Remove appropriate fuse from fuse holder (1).

NOTE: Identify the position when removing fuses.

Pull sliding lock (2) out of fuse holder (1) completely.

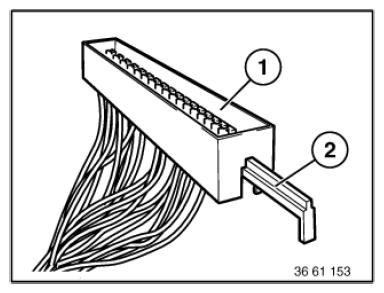

Fig 1: Identifying Sliding Lock And Fuse Holder

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 61 1 136 or 61 1 137 (pressing-off tool), press back retaining hooks (3) of appropriate contact and pull out cable.

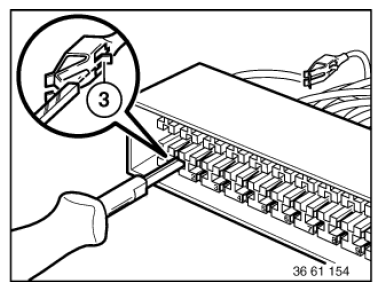

Fig 2: Pressing Back Retaining Hooks Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
