61 13... Cutting off, stripping insulation and cutting optical fibres to length

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

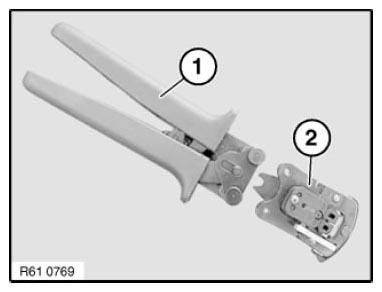

To cut off, strip insulation and cut optical fibres to length, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 322 (2) 61 4 320 from crimping set.

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

Fig 1: Identifying Hand Plier (61 4 321) And Crimping Head (61 4 322)

Courtesy of BMW OF NORTH AMERICA, INC.

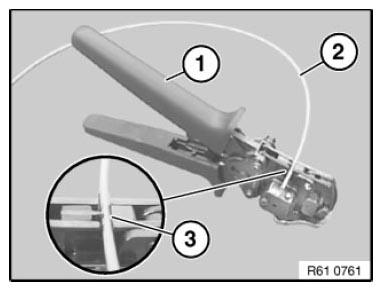

Cutting optical fibre:

Open hand pliers (1).

Place optical fibre (2) in cutting device (3).

Close pliers (1) and remove optical fibre (2).

Fig 2: Cutting Optical Fibre Using Plier

Courtesy of BMW OF NORTH AMERICA, INC.

Stripping insulation from optical fibre:

Open hand pliers (1).

Open lever (2) in direction of arrow.

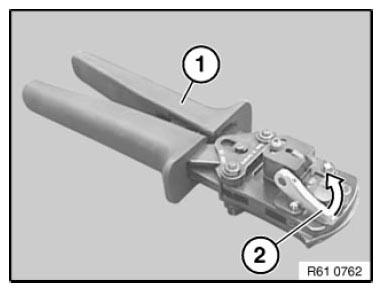

Fig 3: Opening Hand Plier Lever

Courtesy of BMW OF NORTH AMERICA, INC.

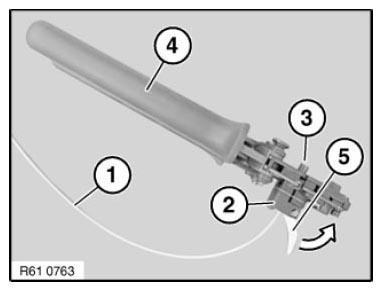

Slide optical fibre (1) into stripping device (2) until flush at point (3).

Close hand pliers (4) fully.

Close clamping lever (5) in direction of arrow.

Open hand pliers (4) by one tooth notch.

Open clamping lever (5) against direction of arrow again and remove optical fibre (1).

NOTE: A stripping replacement blade set is available under number 61 4 327.

Fig 4: Opening Hand Plier Clamping Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting optical fibre to length:

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

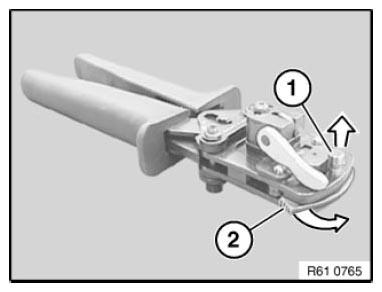

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

Fig 5: Folding Up Blade Retaining Link

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury when changing the blade.

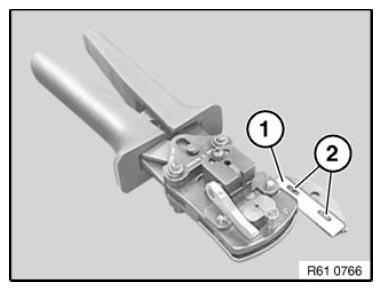

Remove blade (1) and replace.

Installation note:

Make sure blade (1) is correctly seated on locating points (2).

Fig 6: Identifying Hand Plier Blade And Locating Points

Courtesy of BMW OF NORTH AMERICA, INC.

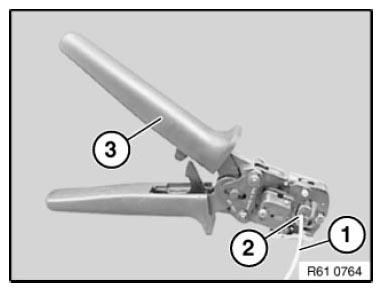

Open hand pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping fixture.

Close hand pliers (3) fully and keep closed.

Remove optical fibre (1).

Fig 7: Cutting Optical Fibre Using Hand Plier

Courtesy of BMW OF NORTH AMERICA, INC.
