61 13... Crimping Micro Power Quadlock contacts (MPQ)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 4 320

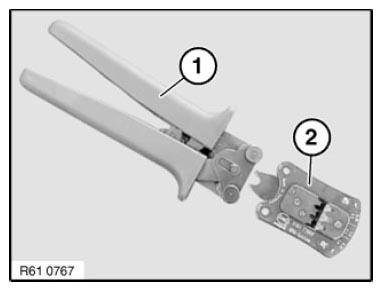

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

Fig 1: Other Language

Courtesy of BMW OF NORTH AMERICA, INC.

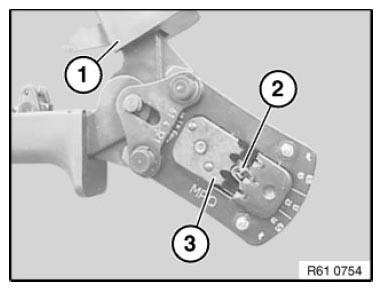

Open hand pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe line crosssection) in crimping head (3). Make sure it is exactly positioned.

Place MPQ contact (2) in crimping head (3).

Close hand pliers (1) one notch.

Fig 2: Other Language

Courtesy of BMW OF NORTH AMERICA, INC.

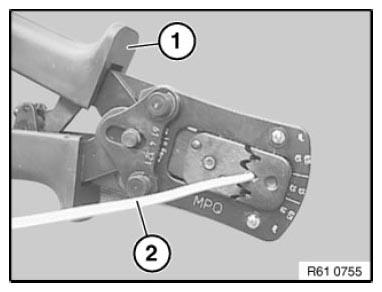

NOTE: Follow procedure for CUTTING AND STRIPPING INSULATION from cables.

Insert stripped cable (2).

Close hand pliers (1) fully.

Open hand pliers (1) and remove cable (2).

NOTE: CHECK CONTACT FOR CORRECT CRIMPING .

Fig 3: Other Language

Courtesy of BMW OF NORTH AMERICA, INC.
