61 14 015 Removing and installing/replacing power distribution box (on battery)

WARNING: This page is about a different car, the 2011 BMW X6 and 2010 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe SAFETY INFORMATIONS of high-voltage system.

WARNING: Observe SAFETY INFORMATION for handling vehicle battery.
Follow instructions on INTELLIGENT BATTERY SENSOR (IBS) .

Necessary preliminary tasks:

Disconnect BOTH NEGATIVE BATTERY CABLES

Disconnect plug connection (1).

Open cover, release nut (3) underneath and disconnect positive battery cable. Tightening torque 61 21 4AZ .

Open cover (5) and release nut (4). Tightening torque 61 21 2AZ .

Using a suitable tool, expand locking bracket (6) at lower end and clip out.

Lift power distribution box (2) out of battery.

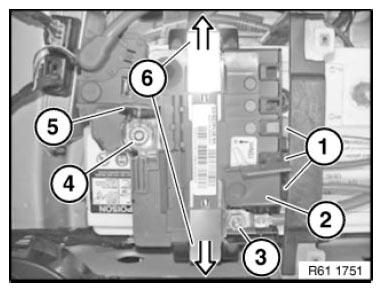

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
